| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | IDE-120 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 5-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Sets Per Year |
| Driven: | Electric | Working Range(OD): | 4"(114.3mm) |
|---|---|---|---|
| Rotation Speed: | 36r/min | Shipping Weight: | 28kgs |
| Packing Size: | 610*520*210mm | Voltage: | 220-240V |
| Frequency: | 50/60HZ | Standard Bevel Angle: | 0°, 30°, 37.5° |
| Warranty: | One Year | ||
| High Light: | electric pipe cutting machine,tube chamfering machine |
||
PIPE BEVELING MACHINE

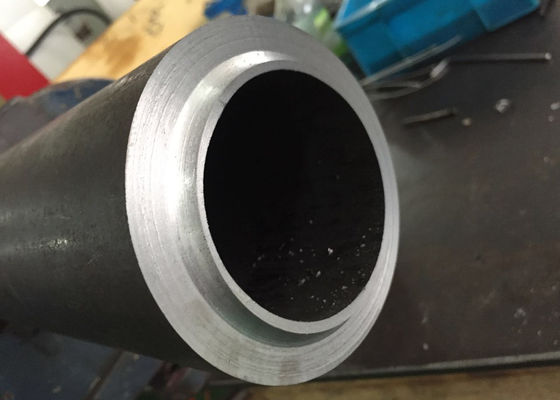

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Features
Application
Specification
Selection Guide
| Model |
Clamping Range (ID) |
Working Range (OD) |
Wall Thickness | ||
| mm | inch | mm | mm | ||
| 80 | 28-76 | 3 | 88.9 | ≤15 | |
| 120 | 40-110 | 4 | 114.3 | ≤15 | |
| 252 | 80-240 | 10 | 273.05 | ≤20 | |
Standard Supply
Working On Site
Exhibition
After-Sale Service
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
