Customized Color Electric Pipe Beveling Machine For End Prepping The Tube

Customized Color Electric Pipe Beveling Machine For End Prepping The Tube

  • Customized Color Electric Pipe Beveling Machine For End Prepping The Tube
  • Customized Color Electric Pipe Beveling Machine For End Prepping The Tube
Customized Color Electric Pipe Beveling Machine For End Prepping The Tube
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: IDE-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Aluminium Alloy Case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Motor: Electric Motor Power Supply: 220-240V 1PH 50/60HZ
Motor Power: 1200W Clamping Range(ID): 28-76mm
Working Range(OD): 3"(88.9mm) Wall Thickness: ≤15mm
Shipping Weight: 21kgs Packing Size: 500*420*180mm
Rotation Speed: 48 R/min Color: Customized
Standard Bevel Angle: 0°, 30°, 37.5°
High Light:

tube chamfering machine

,

electric pipe cutter

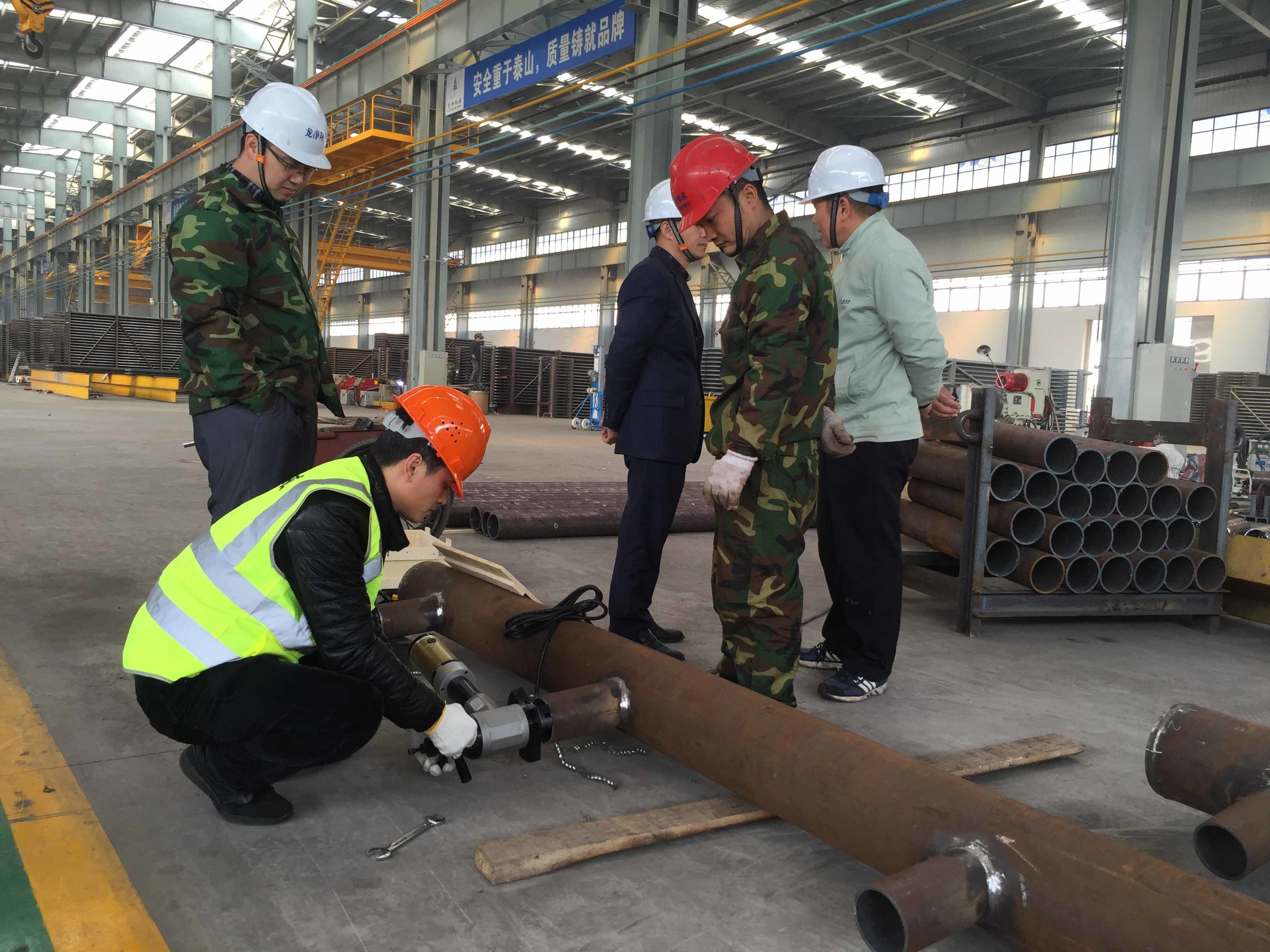

ID-Mounted Electric Driven Pipe Beveling Machine

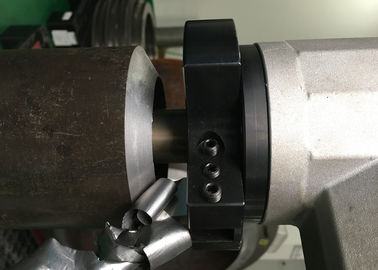

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.





Application


  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Process Plant & Fabrication
  • Ship Building & Repair





Features


  • In-Situ cold Beveling improves safety
  • Easy installation & Operation
  • Self-Centering
  • Can be placed in any direction
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric/ Pneumatic driven for option
  • Adjust Speed





Specification



  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case




Selection Guide


Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-110 4 114.3 ≤15
252 80-240 10 273.05 ≤20






Typical Buttwelding Joint


Customized Color Electric Pipe Beveling Machine For End Prepping The Tube 0




Standard Supply



  • Machine
  • 1 cutting tool bit
  • 1 30 degree beveling tool bit
  • 1 37.5 degree beveling tool bit
  • Air/Electric motor
  • Manual
  • Expanding block
  • Wrench
  • Guarantee card




Order Guide
Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)










After-Sale Service

1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
