Commissioning Lightweight Hydraulic Mechanical Flange Spreaders

Commissioning Lightweight Hydraulic Mechanical Flange Spreaders

  • Commissioning Lightweight Hydraulic Mechanical Flange Spreaders
Commissioning Lightweight Hydraulic Mechanical Flange Spreaders
Product Details:
Place of Origin: CHINA
Brand Name: NODHA
Certification: ISO
Model Number: LFSM-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per year
Contact Now
Detailed Product Description
Model No.: LSFM-8 Max. Spreading Force: 8
Tip Clearance(mm): 6 Max Spread(mm): 81
Type: Mechanical Oil Capacity(cm'): N/A
High Light:

Lightweight Mechanical Flange Spreaders

,

6.5KG Mechanical Flange Spreaders

,

Lightweight Hydraulic Flange Spreaders

LFSM-8 Flange Spreaders lightweight mechanical

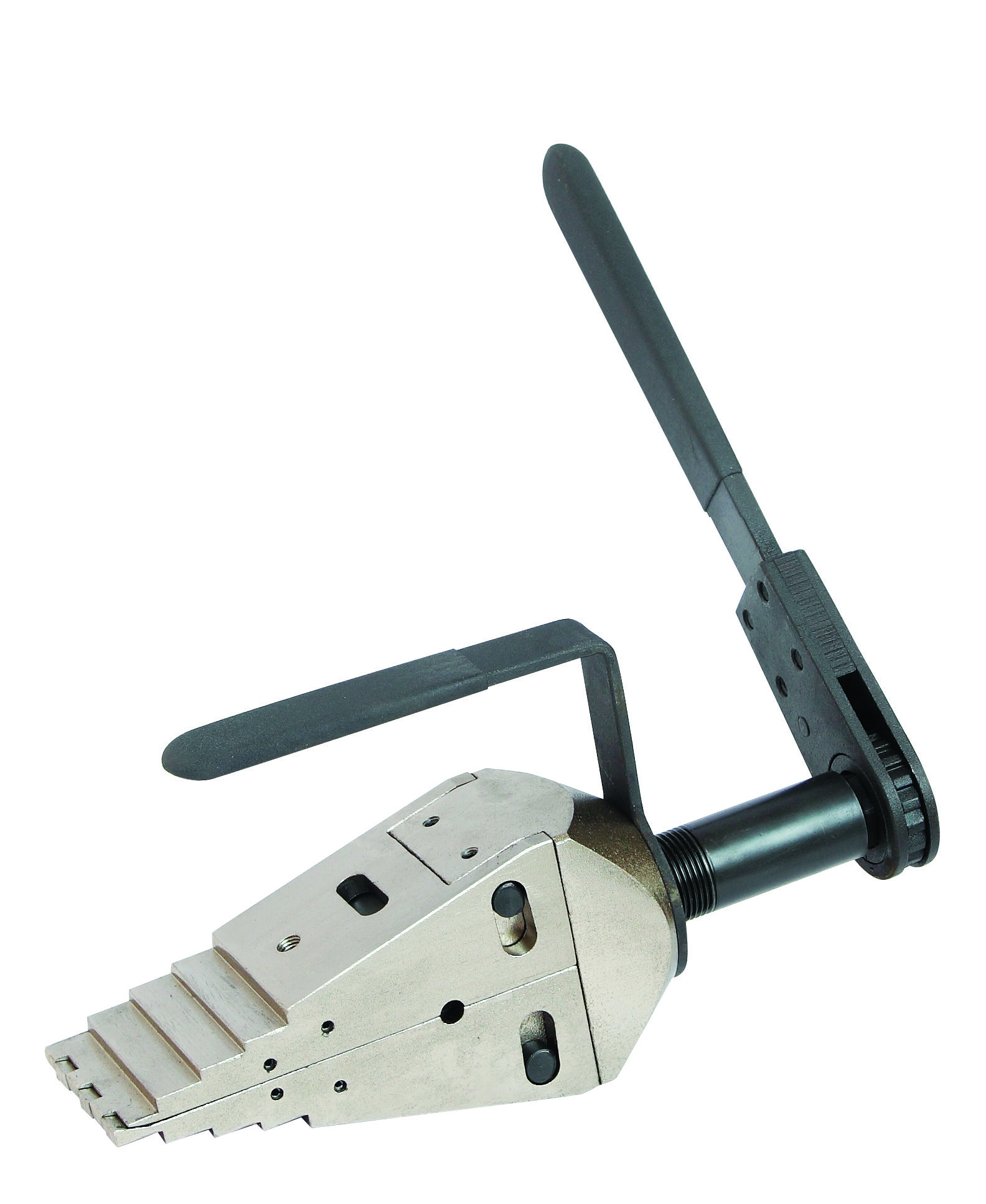

Hydraulic Flange Spreader



For maintenance, commissioning, shutdowns, testing and valve change outs.
No need for hammers, chisels, slings or chain blocks.
Integrated wedge concept:friction-free, smooth and parallel wedge movement
eliminates flange damage and risk of spreading arm failure.
Unique interlocking wedge design No first step bending risk.
Requires very small access gap of only 6mm.
LFSH-14 is can be used with a bolting tool pump or in a set including the
spreader, hand pump, hose, gauge and adapter.



 SPECIFICATION

Model No. Max. spreading force(ton) Tip clearance Max. spread(mm) Type Oil capacity(cm') Weight(kg)
LFSM-8 8 6 81 Mechanical N/A 6.5
LFSH-14 14 6 81 Hydraulic 78 9.3
