Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range

Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range

  • Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range
  • Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range
  • Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range
Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: IDE-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Aluminium Alloy Case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Motor: Electric Motor Motor Power: 1200W
Clamping Range(ID): 28-76mm Working Range(OD): 3"(88.9mm)
Wall Thickness: ≤15mm Rotation Speed: 48r/min
Shipping Weight: 18kgs Packing Size: 500*420*180mm
Feed: Automatic Standard Bevel Angle: 0°, 30°, 37.5°
Refrigeration: Cool Liquid Warranty: One Year
High Light:

electric pipe cutting machine

,

tube chamfering machine


PIPE BEVELING MACHINE


The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten

draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.







Features



  • In-Situ cold Beveling improves safety
  • Easy installation & Operation
  • Self-Centering
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric/ Pneumatic driven for option
  • Adjust Speed







Application



  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Ship Building & Repair







Specification



  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case







Selection Guide



Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-110 4 114.3 ≤15
252 80-240 10 273.05 ≤20







Typical Buttwelding Joint

Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range 0







Tool Bits



Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range 1







Standard Supply



  • Machine
  • 1 cutting tool bit
  • 1 30 degree beveling tool bit
  • 1 37.5 degree beveling tool bit
  • Air/Electric motor
  • Manual
  • Expanding block
  • Wrench
  • Guarantee card

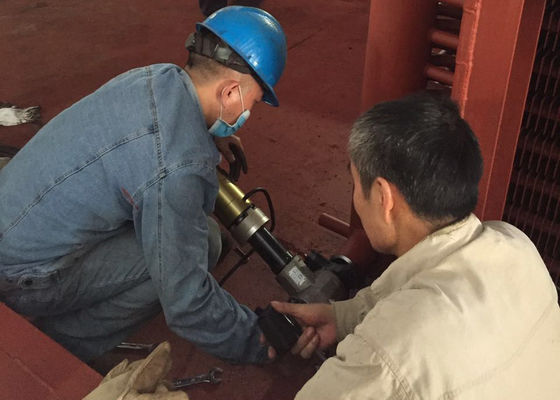

Working On-site



Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range 2







Exhibition



Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range 3







After-Sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
