| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | IDE-80 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Aluminium Alloy Case |
| Delivery Time: | 5-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Sets Per Year |
| Clamping Range(ID): | 28-76mm | Working Range(OD): | 3"(88.9mm) |
|---|---|---|---|
| Wall Thickness: | ≤15mm | Working Weight: | 9.5kgs |
| Shipping Weight: | 18kgs | Packing Size: | 500*420*180mm |
| Voltage: | 220-240V | Frequency: | 50/60HZ |
| Motor: | Electric Motor | ||
| High Light: | tube chamfering machine,electric pipe cutter |
||

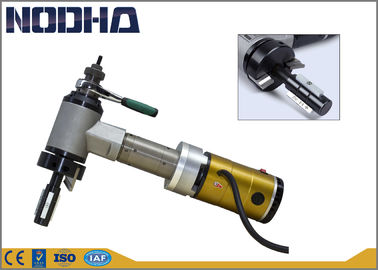

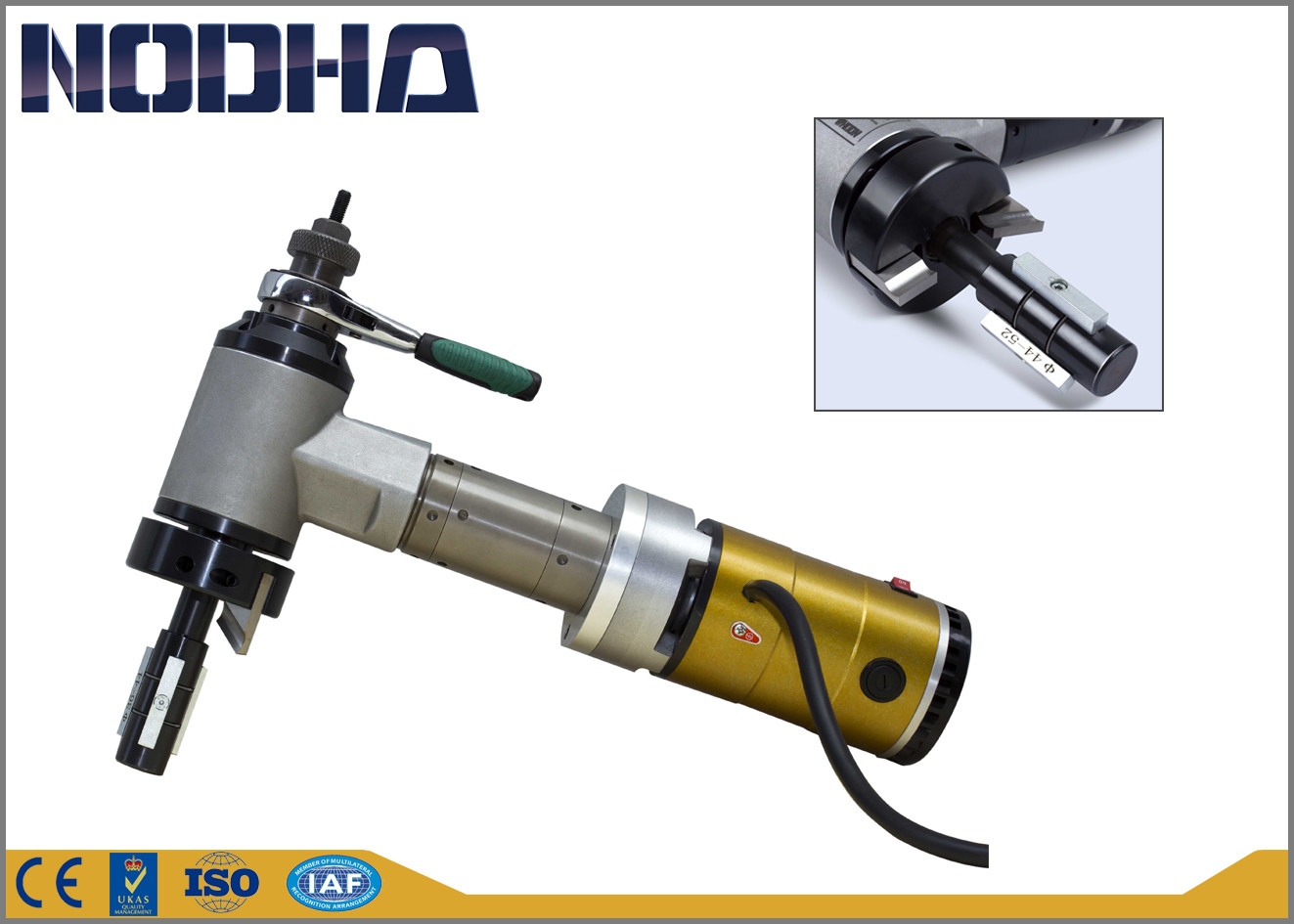

PIPE BEVELING MACHINE

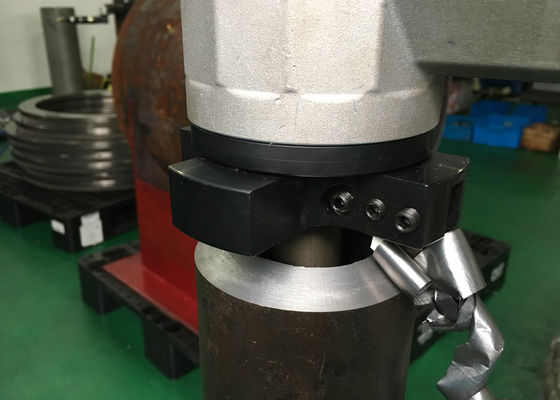

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Features
Application
Specification
Selection Guide
| Model |
Clamping Range (ID) |
Working Range (OD) |
Wall Thickness | ||
| mm | inch | mm | mm | ||
| 80 | 28-76 | 3 | 88.9 | ≤15 | |
| 120 | 40-110 | 4 | 114.3 | ≤15 | |
| 252 | 80-240 | 10 | 273.05 | ≤20 | |
Tool Bits
Standard Supply

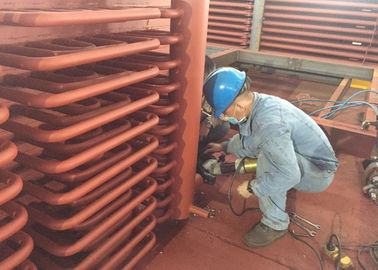

Working On Site
Exhibition
After-Sale Service
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
