| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | GBM- 6DT |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 10 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Sets Per Year |
| Motor Voltage: | AC 380V 3PH 50Hz | Motor Power: | 400W |
|---|---|---|---|
| Motor Speed: | 1400RPM | Bevel Speed: | 1.2~1.8m/min |
| Bevel Angle: | 25~45 Deg(adjustable) | Plate Thickness: | 4~16mm |
| Max Bevel Width: | 8mm | N.W: | 33kgs |
| High Light: | Steel Plate Beveling Machine,Plate Edge Beveling Machine |
||

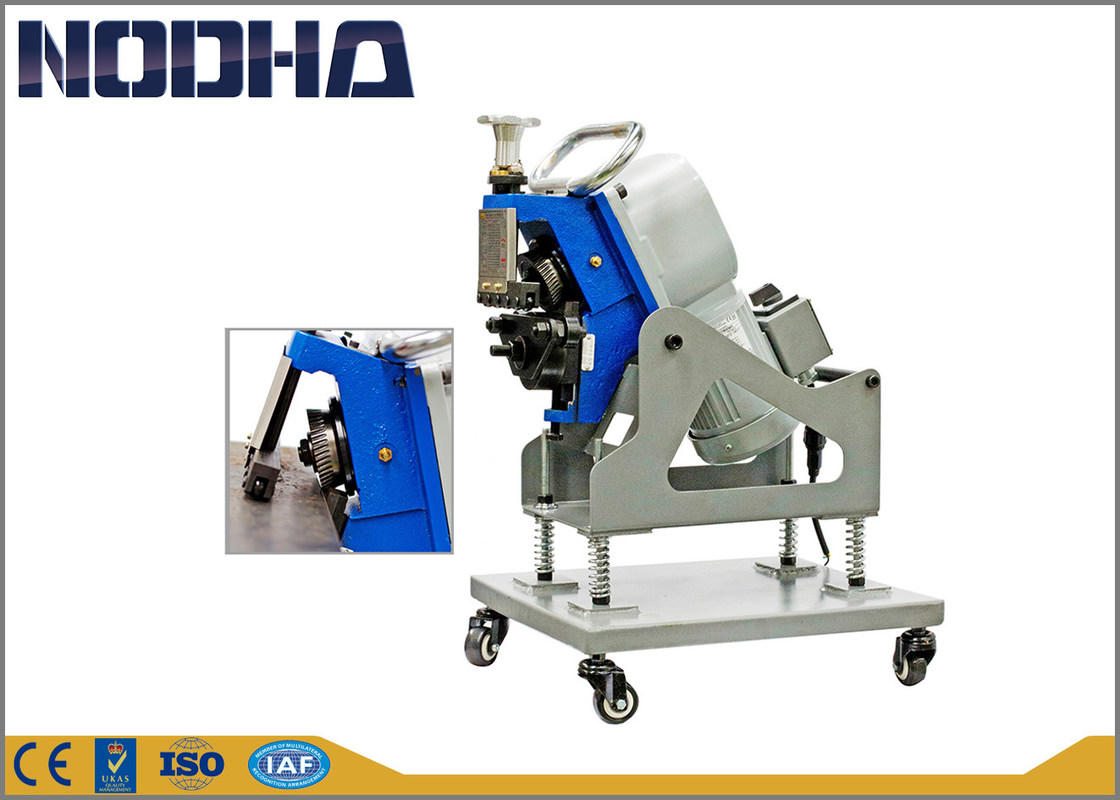

Small Beveling Machine Portable Chamfering Machine Portable Plate Beveling Machine
| Introduction |
GBM-6D type automatic Plate beveling machine speed 1.2~1.8m/min, clamping plate thickness
4~16mm and tensile strength of the material is 40kg/mm l steel plate, single feed beveling width 6mm
and the second can be 8mm, Bevel angle 25°, 30°, 35°, 40° and 45 °.
| Features |
Can process steel, pipe head
Can do V/Y type of bevel.
Cold cutting, non-oxidation on the surface
Adopt Japan original motor and reduction gear box
Ultra-high energy efficient, IE3 standard.
No scrap iron splash, Low noise. more safe and environmental
Beveling angle can be adjusted between 25Deg to 45Deg
|
Application |
The products used in aerospace, petrochemical industry, pressure vessel, shipbuilding, metallurgy and unloading pr-
ocessing factory welding manufacturing field.
|
Machine parameters |
| Motor voltage:AC 380V 50Hz | Motor power:400W |
| motor speed:1400r/min | bevel speed:1.2~1.8m/min |
| Single bevel width:6mm | Max bevel width: 8mm |
| Thickness of the plate:4~16mm | Plate bevel angle :25°~ 45 º |
| Net weight :33kg | Mini clamping plate width:≥55mm |
| Exhibition |
| Certificate |
| After-sale Service |
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
