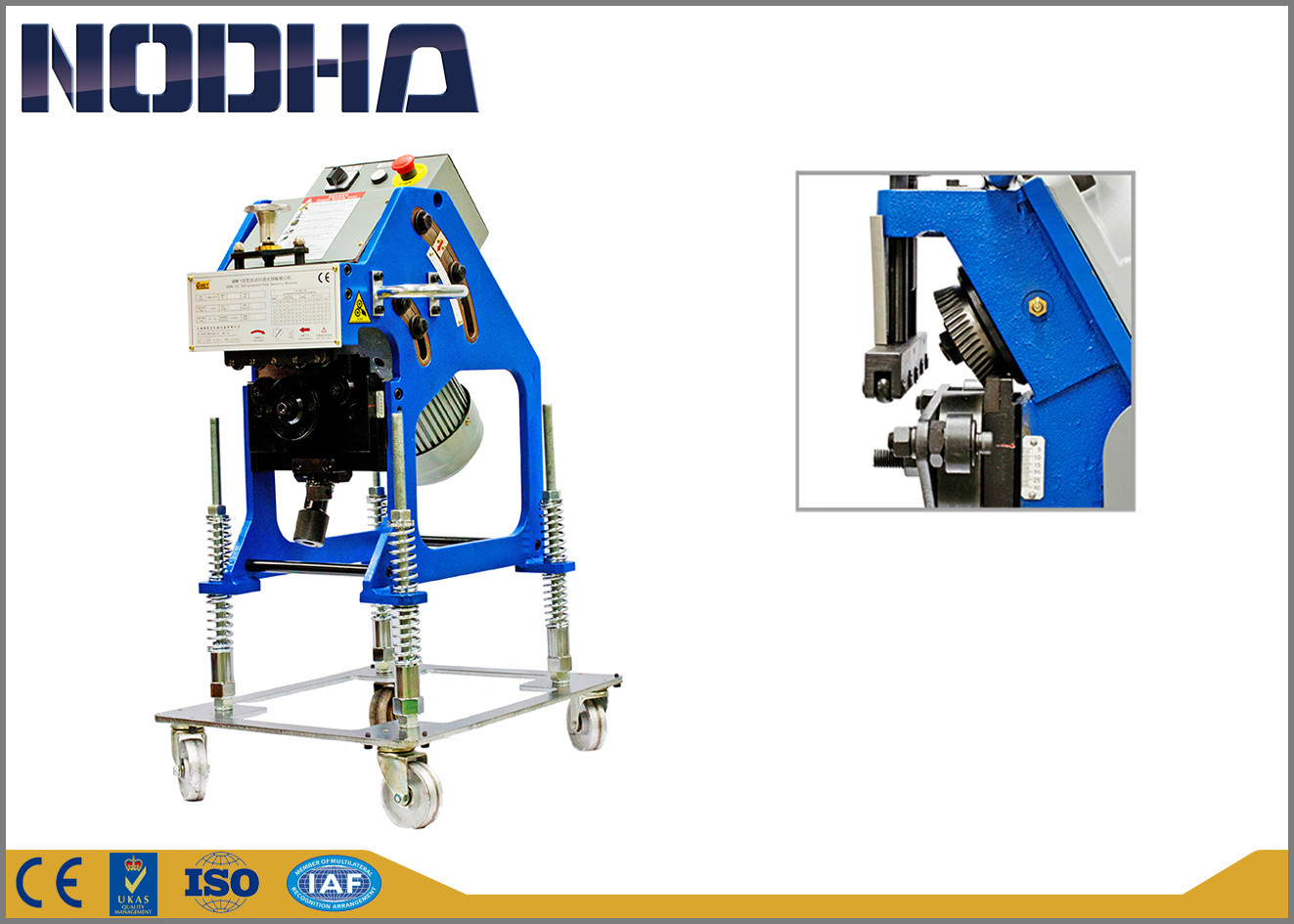

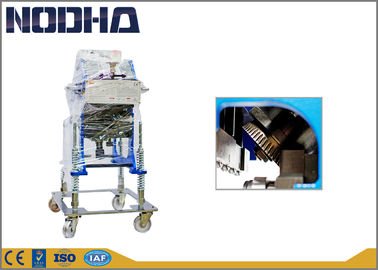

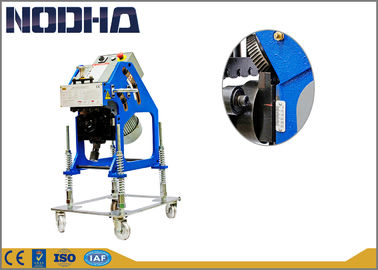

1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power

1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power

  • 1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power
  • 1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power
  • 1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power
1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: GBM-12D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Motor Voltage: 380V 3PH 50Hz Motor Power: 1.5 KW
Motor Speed: 1400RPM Bevel Speed: 1.5~2.6 M/min
Bevel Angle: 25~45 Deg(adjustable) Plate Thick: 6 ~ 30mm
Max Bevel Width: 18 Mm N.W: 175kgs
High Light:

Plate Edge Beveling Machine

,

Portable Plate Beveler

V/Y Type Groove Machine Portable Steel plate Beveling Machine for 6 - 30 mm Cuting and Beveling Machine





Introduction



GBM-12D Automatic Plate beveling machine with trolley speed 1.5~2.6 m/min, clamping plate thickness from 6 to 30mm and tensile strength of the material is 40kg/mm, single bevel width 12mm, bevel width can be 18mm at second or as you need Bevel angle 25°, 30, 35, 37.5 and 45 ° .





Features



Can do V/Y type of bevel.

Can process steel, low carbon steel, stainless steel, aluminum alloy and other materials

Cold cutting, non-oxidation on the surface

Adopt Japan original motor and reduction gear box

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 25 to 45 deg





Application



The types of products used in aerospace, petrochemical industry, pressure vessel, shipbuilding, metallurgy and unloading processing factory welding manufacturing field, can process low carbon steel, stainless steel, aluminum alloy and other materials



1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power 0



Machine parameters



Motor voltage:AC 380V 50Hz Motor power:1500W
motor speed:1400RBM bevel speed:1.2~2.6m/min
Single bevel width:12mm Max bevel width: 18mm
Thickness of the plate:6~30mm Plate bevel angle :25°, 30,35, 37.5 and 45 º
Net weight :175kg Mini clamping plate width:≥75mm



Exhibition



1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power 1







Certificate



1400RPM Pipe Cold Cutting Tools , Portable Chamfering Machine 1.5 KW Motor Power 2





After-sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
