| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | IDP-120 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Aluminium Alloy Case |
| Delivery Time: | 5-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Sets Per Year |
| Name: | Pneumatic Pipe Beveling Machine | Driven: | Pneumatic |
|---|---|---|---|
| Power Supply: | 900L/Min@0.6Mpa | Clamping Range(ID): | 40-112mm |
| Working Range(OD): | 4"(114.3mm) | Wall Thickness: | ≤15mm |
| Rotation Speed: | 35r/min | Shipping Weight: | 26kgs |
| Packing Size: | 610*520*210mm | Warranty: | One Year |
| High Light: | pipe beveling equipment,weld prep machine |
||
PNEUMATIC PIPE BEVELING MACHINE
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
| Selection Guide |
| Model |
Clamping Range (ID) |
Working Range (OD) |
Wall Thickness | ||
| mm | inch | mm | mm | ||
| 80 | 28-76 | 3 | 88.9 | ≤15 | |
| 120 | 40-112 | 4 | 114.3 | ≤15 | |
| 252 | 80-240 | 10 | 273.05 | ≤20 | |
| Order Guide |
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
| Features of pneumatic pipe beveling machine |
| Specification of pneumatic pipe beveling machine |

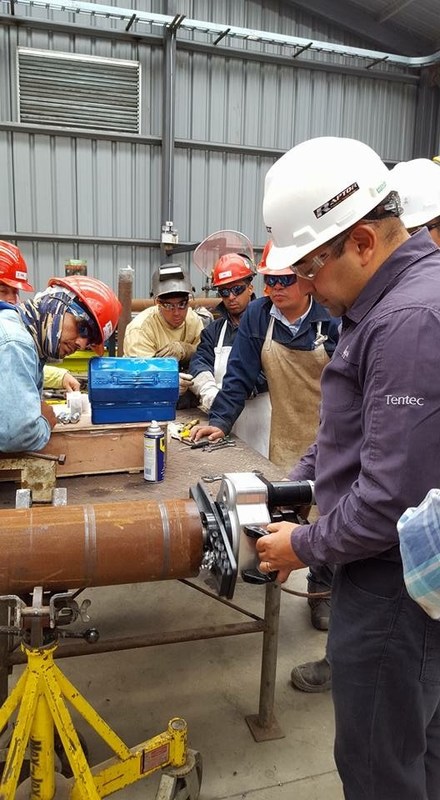

Working On Site
Exhibition
After-Sale Service (pneumatic pipe beveling machine
1. Warranty period: 12 months(Electric motor 6 months)
2. Emergency spare parts required dispatched within 24 hours
