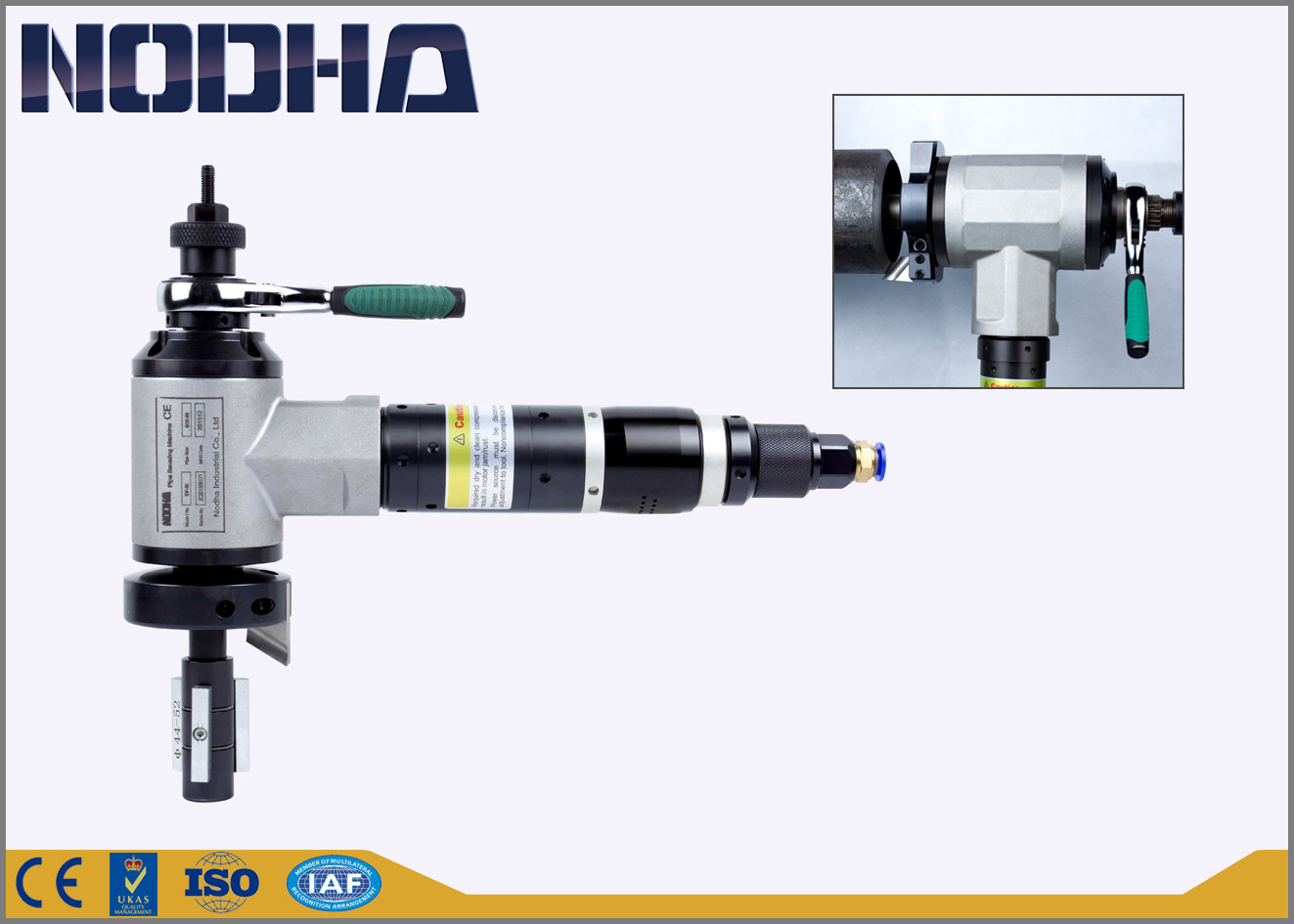

3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle

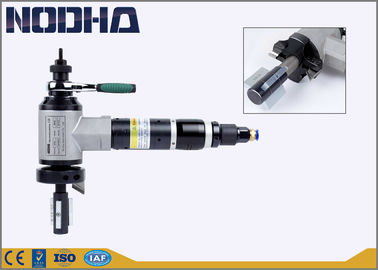

3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle

  • 3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle
  • 3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle
  • 3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle
3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: IDP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case/Optional Plastic case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Driven: Pneumatic Power Supply: 900L/Min@0.6Mpa
Motor Power: 1 HP Clamping Range(ID): 28-76mm
Working Range(OD): 3"(88.9mm) Wall Thickness: ≤15mm
Rotation Speed: 46r/min Working Weight: 8.15kgs
Shipping Weight: 16kgs Packing Size: 500*420*180mm
Standard Bevel Angle: 0°,30°,37.5°
High Light:

pipe beveling equipment

,

weld prep machine



PIPE BEVELING MACHINE



The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.





Features



  • On-site cold Beveling improves safety
  • Easy set-up & Operation
  • Self-centering Clamping systerm
  • Can be positioned in any direction
  • Compact design & Light weight
  • Electric or Pneumatic driven for option



Application



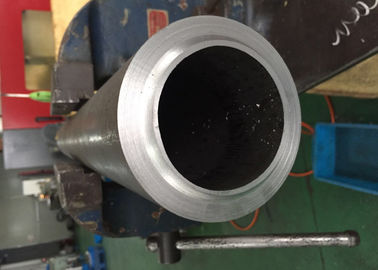

3'' OD working range Convenient ID-Mounted Pneumatic Pipe Beveling Machine 0° / 30° / 37.5° Bevel Angle 0







Specification



  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case







Selection Guide



Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-112 4 114.3 ≤15
252 80-240 10 273.05 ≤20









Order Guide



Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)
