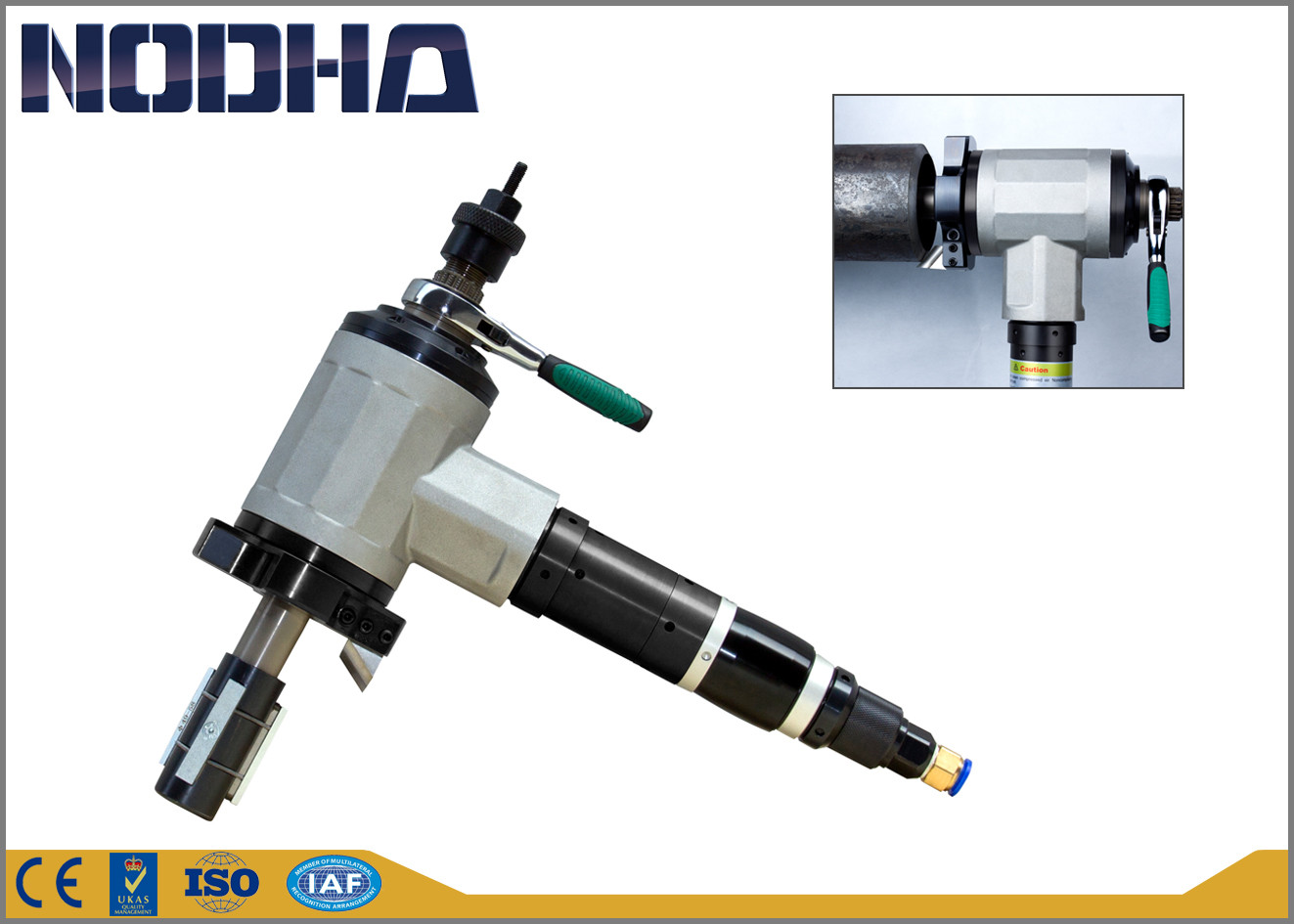

Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation

Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation

  • Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation
  • Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation
  • Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation
Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: IDP-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Driven: Pneumatic Power Supply: 900L/Min@0.6Mpa
Motor Power: 1 HP Clamping Range(ID): 40-112mm
Working Range(OD): 4"(114.3mm) Working Weight: 18.5kgs
Shipping Weight: 26kgs Packing Size: 610*520*210mm
Feed: Automatic Refrigeration: Cool Liquid
Color: Customized
High Light:

portable beveling machine

,

weld prep machine



PIPE BEVELING MACHINE

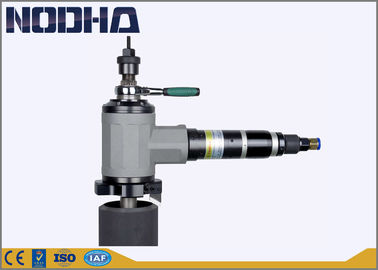

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten

draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.







Features



  • Right angle tool rigidly mounts to tube I.D.
  • Easy installation & Operation
  • Self-Centering
  • Can be placed in any direction
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric or Pneumatic driven for option
  • Adjust Speed





Application



  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Process Plant & Fabrication
  • Ship Building & Repair





Specification



  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case





Selection Guide



Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-112 4 114.3 ≤15
252 80-240 10 273.05 ≤20







Order Guide



Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed





After Beveling



Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation 0







Exhibition



Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation 1







Packaging



Light Weight Air End Preparation Pipe , Pipe Prepping Machine 18.5kgs easy operation 2







After-Sale Service



1. Warranty period: 12 months(Electric motor 6 months)

2. Emergency spare parts required dispatched within 24 hours
