| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | IDP-80 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case/Optional Plastic case |
| Delivery Time: | 5-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Sets Per Year |
| Motor: | Air Motor | Power Supply: | 900L/Min@0.6Mpa |
|---|---|---|---|
| Clamping Range(ID): | 28-76mm | Working Range(OD): | 3"(88.9mm) |
| Wall Thickness: | ≤15mm | Rotation Speed: | 46r/min |
| Working Weight: | 8.15kgs | Packing Size: | 500*420*180mm |
| Feed: | Automatic | Bevel Angle: | 0°, 30°, 37.5° |
| High Light: | portable beveling machine,pipe beveling equipment |
||

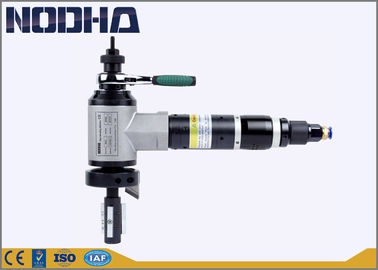

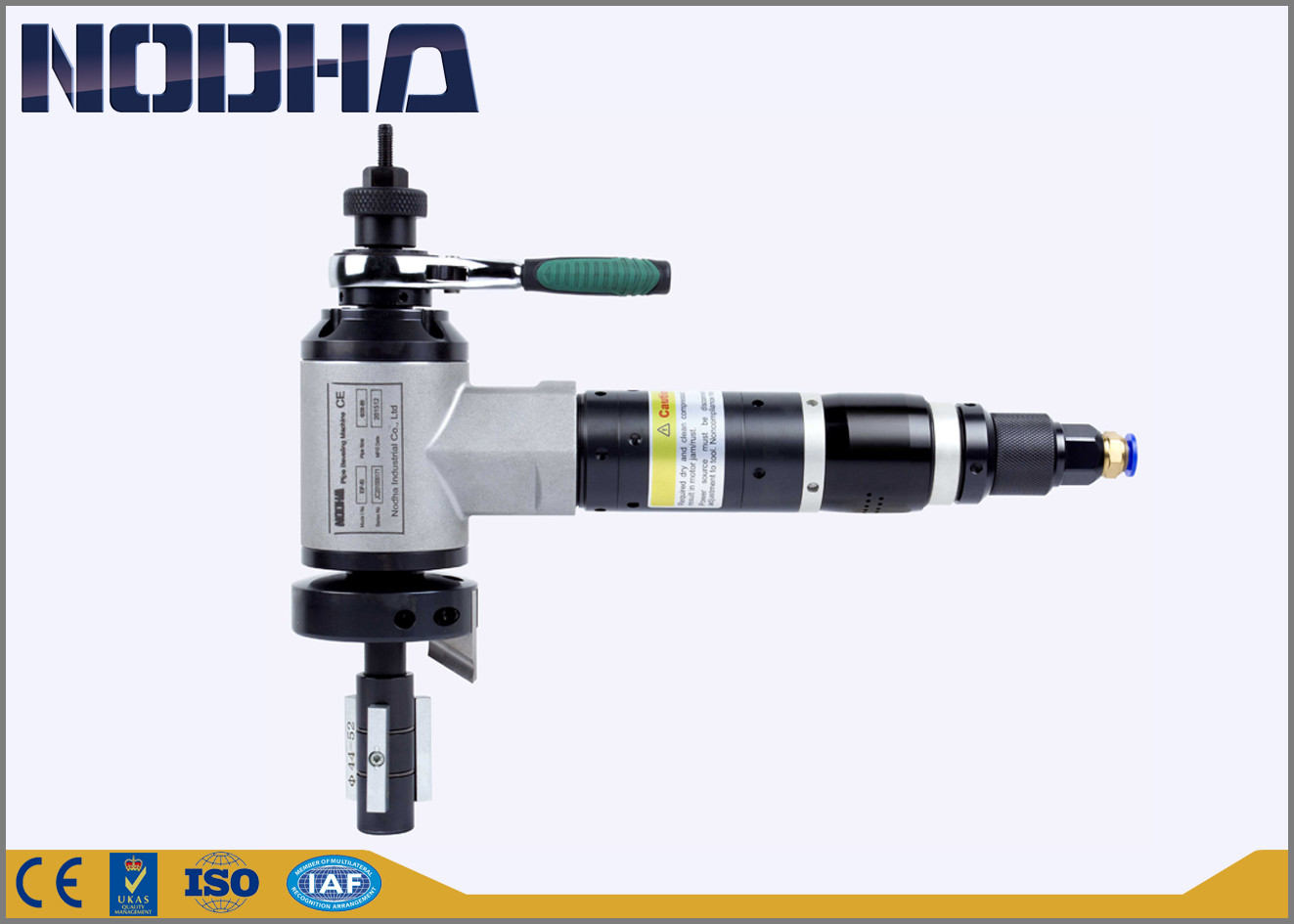

Pipe Beveling Machine

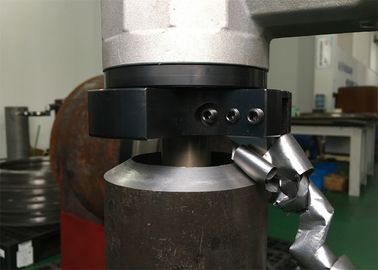

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Application
Specification
Selection Guide
| Model |
Clamping Range (ID) |
Working Range (OD) |
Wall Thickness | ||
| mm | inch | mm | mm | ||
| 80 | 28-76 | 3 | 88.9 | ≤15 | |
| 120 | 40-110 | 4 | 114.3 | ≤15 | |
| 252 | 80-240 | 10 | 273.05 | ≤20 | |
Typical Buttwelding Joint
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Facing or Inside beveling)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed

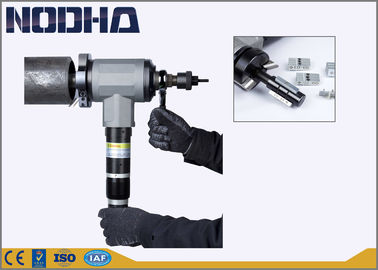

Working On Site
Exhibition
After-Sale Service
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
