| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | GBM- 6D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 10 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Sets Per Year |
| Motor Voltage: | AC 380V 3PH 50Hz | Motor Power: | 400W |
|---|---|---|---|
| Motor Speed: | 1400RPM | Bevel Speed: | 1.2~1.8m/min |
| Bevel Angle: | 25~45 Deg(adjustable) | Plate Thick: | 4~16mm |
| Max Bevel Width: | 8mm | N.W: | 33kgs |
| Package: | 675*543*885mm | ||
| High Light: | Steel Plate Beveling Machine,Portable Plate Beveler |
||
Energy-saving Hand Plate Beveling machine Pipe Beveling Machine Tube Beveling Machine
| Introduction |

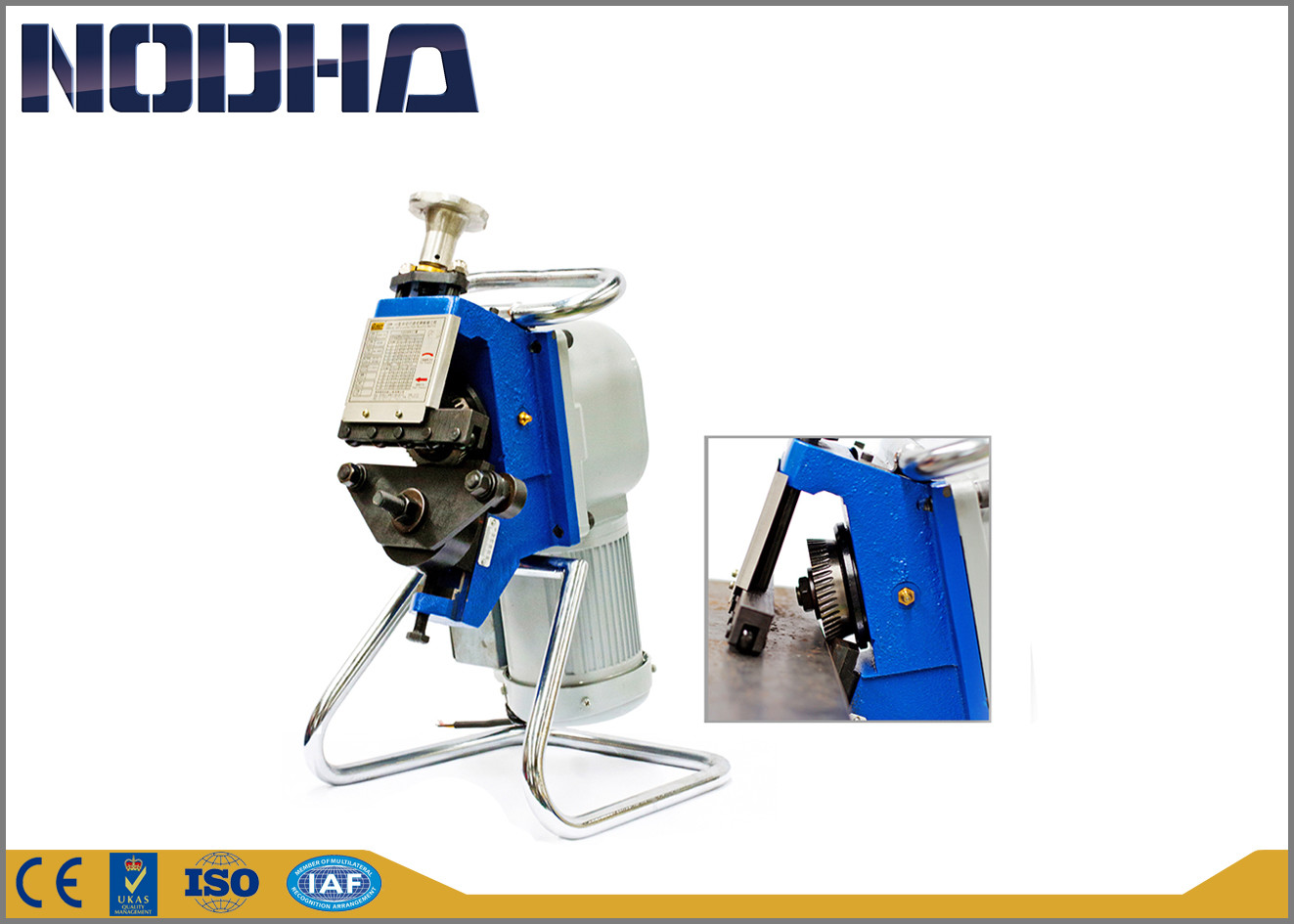

GBM-6D type Plate beveling machine speed 1.2~1.8m/min, processing plate thickness less than 16mm, And the angle is adjustable between 25 to 45 deg.adopt principle of roll cutter to bevel the edge of plate,
it can process low carbon steel, aluminum alloy and so on.
| Features |
Can process steel, pipe head
Can do V/Y type of bevel.
Cold cutting, non-oxidation on the surface
Adopt Japan original motor and reduction gear box
Ultra-high energy efficient, IE3 standard.
No scrap iron splash, Low noise. more safe and environmental
Beveling angle can be adjusted between 25Deg to 45Deg
|
Application |
The products used in aerospace, petrochemical industry, pressure vessel, shipbuilding, metallurgy and unloading processing factory welding manufacturing field.
|
Machine parameters |
| Motor voltage:AC 380V 50Hz | Motor power:400W |
| motor speed:1400r/min | bevel speed:1.2~1.8m/min |
| Single bevel width:6mm | Max bevel width: 8mm |
| Thickness of the plate:4~16mm | Plate bevel angle :25°~ 45 º |
| Net weight :33kg | Mini clamping plate width:≥55mm |
| Exhibition |
| Certificate |
| After-sale Service |
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
