1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter

1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter

  • 1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter
  • 1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter
  • 1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter
1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter
Product Details:
Place of Origin: CHINA
Brand Name: NODHA
Certification: ISO
Model Number: H2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 500
Packaging Details: CASE
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
Name: Hinged Pipe Cold Cutter Model: H2S
Color: Red Pipe Size (OD): 1-2 1/2''(25-63mm)
N.W.: 3kgs G.W.: 3.5kgs
Packing Size: 470*170*70mm
High Light:

1 Inch Low Clearance Rotary Cutter

,

Hinged Low Clearance Rotary Cutter

,

1 Inch Hinged Pipe Cold Cutter

1-2 1/2'' Hinged pipe cold cutter low clearance Rotary Cutter

INTRODUCTION:

* Designed for rapid cutting of 1" through 14" steel pipe
* The cutters operate with minimal cutter rotation (90-110deg.) as necessary for tight space
* Cold Cut without spark
* Portable and light weight, easy for transportation
* Suitable to cut steel pipe, cast iron pipe, galvanized pipe, ductile iron pipe, black iron pipe


SPECIFICATION:
Model        H2S H4S H6S H8S H14S H18S H22S
Pipe Size(OD)  Inch 1"-2 1/2" 2"-4" 4"-6" 6"-8" 10"-14" 16“-18'” 20"-22"
Pipe Size(OD) mm 32-76 60-125 114-182 168-240 266-358 368-462 476-572
N.W(KGS) 3 6.5 9 12 23 28 40
G.W(KGS) 3.5 7 10 12.5 32 41.5 50
Packing Size(mm) 470*170*70 605*230*100 750*230*110 850*390*120 1180*360*165 1010*530*200 1010*530*200




PHOTO:

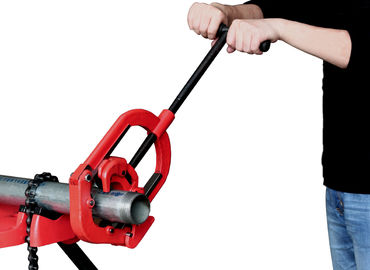

1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter 0

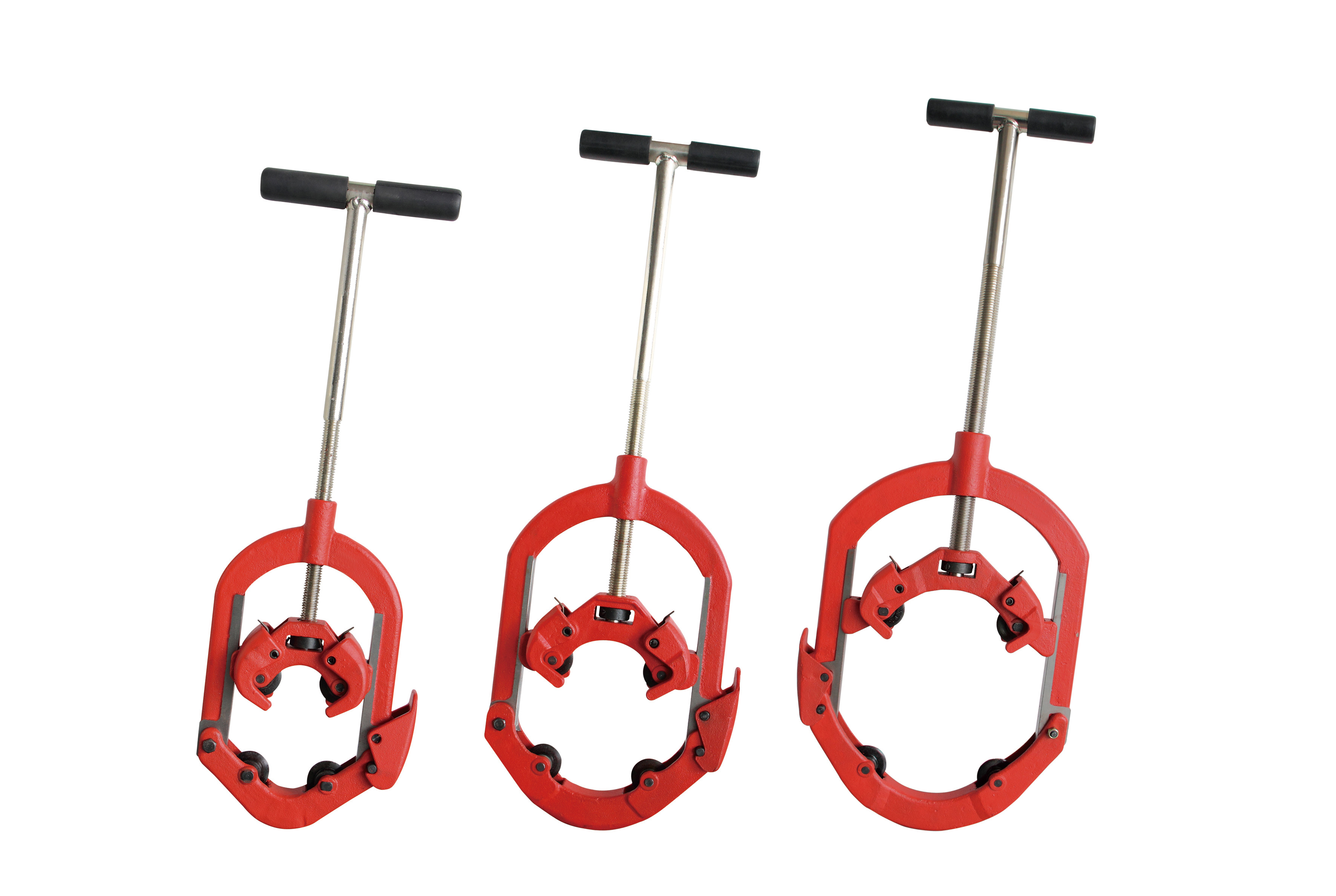

1-2 1/2'' Hinged Pipe Cold Cutter Low Clearance Rotary Cutter 1
