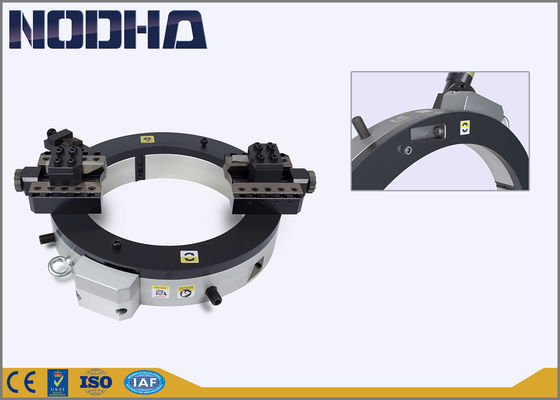

High Efficiency Hydraulic Pipe Cutter Portable , Bevel Cutting Machine For Pipes

1. Cold Cutting and Beveling improve safety
2. Cutting and Beveling simultaneous
3. Split Frame: easy mounted on pipeline
4. Self-acting tools feed
5. Fast, Precision, In-situ Beveling
6. Easy install & Operation
7. Pneumatic or Electric or Hydraulic driven
8. Machining heavy-wall pipe from 2” up to 48”

1. Oil & Gas File
2. Power Plant
3. Nuclear Power Plant
4. Process Plant & Fabrication
5. Ship Building & Repair

1. Drive Options: Pneumatic, Hydraulic, and Electric
2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
3. Hydraulic requirement: 2-60L per minute 12.5Mpa
4. Electric requirement:220-240V 1PH 50/60HZ
5. Feed rate: Fixed 0.08mm per circle

Suggest: size 1066 and above size select and use hydraulic type

Before you place order to us, please let us know the following information:

1. Choose suitable Model

2. Confirm electric power supply ( Voltage, frequency and phase)

3. Confirm the beveling angel needed

4. Confirm the welding joint required (U, V, Double V or Compound preparation)

5. Advise your pipe material ( Carbon steel, stainless steel or others)

6. If the pipe wall thickness more than 30mm, inform us in advance (Important)
