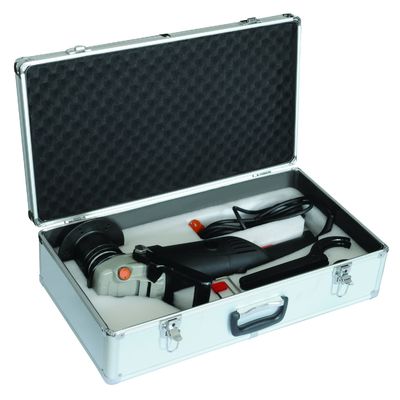

PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power

PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power

    • PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
    • PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
    • PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
  • PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power

    Product Details:

    Place of Origin: WUXI
    Brand Name: NODHA
    Certification: CE,ISO
    Model Number: PB-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiation
    Packaging Details: Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
    Delivery Time: 5-7 Working Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 SETS/ YEAR
    Contact Now
    Detailed Product Description
    Power Supply: 220-240V 1PH 50/60HZ Motor Power: 2450W
    Spindle Speed: 2500-7500 RPM Feed Speed: 1-10 M/Min
    Beveling Width: 1-18mm Radius Dimension: R2, R3
    Beveling Angle: 20,30,35,37.5,45,55 And 60 Deg. Minimal Plate Thickness: 1.5mm
    Minimal Inner Radius: 25mm Weight: 8.5kgs
    Inserts Qty: 4 Or 5 Pcs After-sale Service Provided: Engineers Available To Service Machinery Overseas



    Edge Milling Machine:



    PB-15 applies to preparation before plate welding, also edge rouding off steel construction before painting or coating. The machine equipped with continuous bevel width adjustment, overheating protection and electric speed control for use on various material. The compact design makes it an excellent tool in narrow space. The multi function and flexibility can improve efficiency and make the machine become an attarctive machine.







    Features



    • High speed, high precious
    • Cold working
    • Compact and portable design
    • 2450w powerful motor-Improve efficiency
    • Small and light tool head, can process with 25mm radius inner curve







    Application



    • For machining work pieces made of steel, chromium steel, fine-grained steel, aluminum, aluminum alloys, brass and plastics
    • For commercial use in industrial settings and in the skilled-trades
    • For preparing K, V, X and Y-shaped welding grooves
    • For creating visible edges in plant and mechanical engineering work







    Specification



    • Power Supply: 220-240V 1PH 50/60HZ
    • Motor: 2450 W
    • Rotation: 2500-7500 RPM
    • Beveling Angle: 30° (Standard) (Option: 20°/37.5°/45° tool head)
    • Beveling Width:1-18mm (Single side)
    • Weight: 8.5 kg





    Exhibition



    PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power







    Certification



    PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power



    After-sale Service



    1. Warranty period: 12 months

    2. Emergency spare parts required dispatched within 24 hours
