Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount

Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount

    • Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount
    • Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount
  • Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount

    Product Details:

    Place of Origin: WUXI
    Brand Name: NODHA
    Certification: CE, ISO
    Model Number: ODP-168

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiation
    Packaging Details: Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
    Delivery Time: 5-7 Working Days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 500 SETS/ YEAR
    Contact Now
    Detailed Product Description
    Drive: Air Driven Power Supply: 1500-3000L/Min@0.6/0.7Mpa
    Working Range(OD): 2"-6"(50-168mm) Wall Thickness: ≤30mm
    Material: Steel Shipping Weight: 72kgs
    Working Weight: 46kgs Package Size: 640*650*280mm
    Mounting Method: Split OD Mount Warranty: One Year



    Pipe Cutting and beveling Machine:



    The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.







    Features



    • Cold Cutting and Beveling improve safety
    • Split Frame
    • Cut or Cut/Bevel simultaneous
    • Low Axial & Radial Clearance
    • Tool feed automatically
    • Easy install & Operation
    • Pneumatic, Electric and Hydraulic type for option
    • Machining OD of pipe from 2” up to 48”







    Application



    • Oil & Gas File
    • Power Plant
    • Chemical Plant
    • Nuclear Power Plant
    • Process Plant & Fabrication
    • Ship Building & Repair







    Specification



    • Drive Options: Pneumatic, Hydraulic, and Electric
    • Air requirement: 1500L-3000L/Min@0.6/0.7Mpa
    • Hydraulic requirement: 2-60L/Min@12.5Mpa
    • Electric requirement: 220-240V 1PH 50/60HZ
    • Feed mode: Star wheel, automatically
    • Feed rate: Fixed@0.08mm per circle
    • Packaging: Plywood case







    Selection Guide



    Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount





    Model Working Range (OD) d (mm) D(mm) L (mm)
    Inch mm Steel body Aluminum body
    168 2”-6” 50-168 185 512 178 192
    230 3”-8” 80-230 236 564 178 192
    275 5”-10” 125-275 283 612 178 192
    325 6”-12” 168-325 334 665 178 192
    377 8”-14” 219-377 386 719 178 192
    426 10”-16” 273-426 438 776 180 195
    457 12”-18” 300-457 469 807 180 195
    508 14”-20” 355-508 518 862 190 195
    560 16”-22” 400-560 570 910 190 195
    610 18”-24” 457-610 618 960 190 195
    660 20”-26” 508-660 670 1020 190 195
    715 22”-28” 550-715 719 1084 190 198
    762 24”-30” 600-762 770 1134 190 198
    830 26”-32” 660-813 830 1194 192 207
    914 30”-36” 762-914 924 1296 212 214
    1066 36”-42” 914-1066 1077 1468 212 216
    1230 42”-48” 1066-1230 1248 1646 212 216




    Suggest: size 1066 and above size select and use hydraulic type







    Typical Buttwelding Joint



    Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount



    Suggest: if any other welding seam or special demand, please better to advise us before you place the order.







    Order Guide



    Before you place order to us, please let us know the following information:

    • Choose suitable Model

    • Confirm electric power supply ( Voltage, frequency and phase)

    • Confirm the beveling angel needed

    • Confirm the welding joint required (U, V, Double V or Compound preparation)

    • Advise your pipe material ( Carbon steel, stainless steel or others)

    • Other special demands about machine

    • The spare parts required

    • If the pipe wall thickness more than 30mm, inform us in advance (Important)

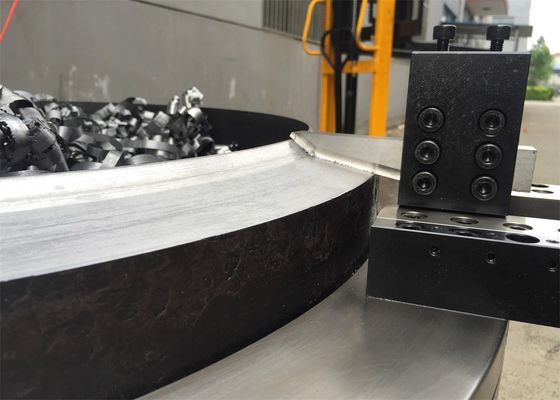

    Working On Site



    Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount







    Exhibition



    Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount







    Certification



    Steel Material Pneumatic Pipe Cutting Beveling Machine Split OD Mount







    After-sale Service

    1. ​Warranty period: 12 months(Electric motor 6 months)
    2. Emergency spare parts required dispatched within 24 hours
