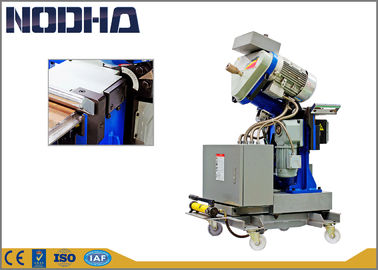

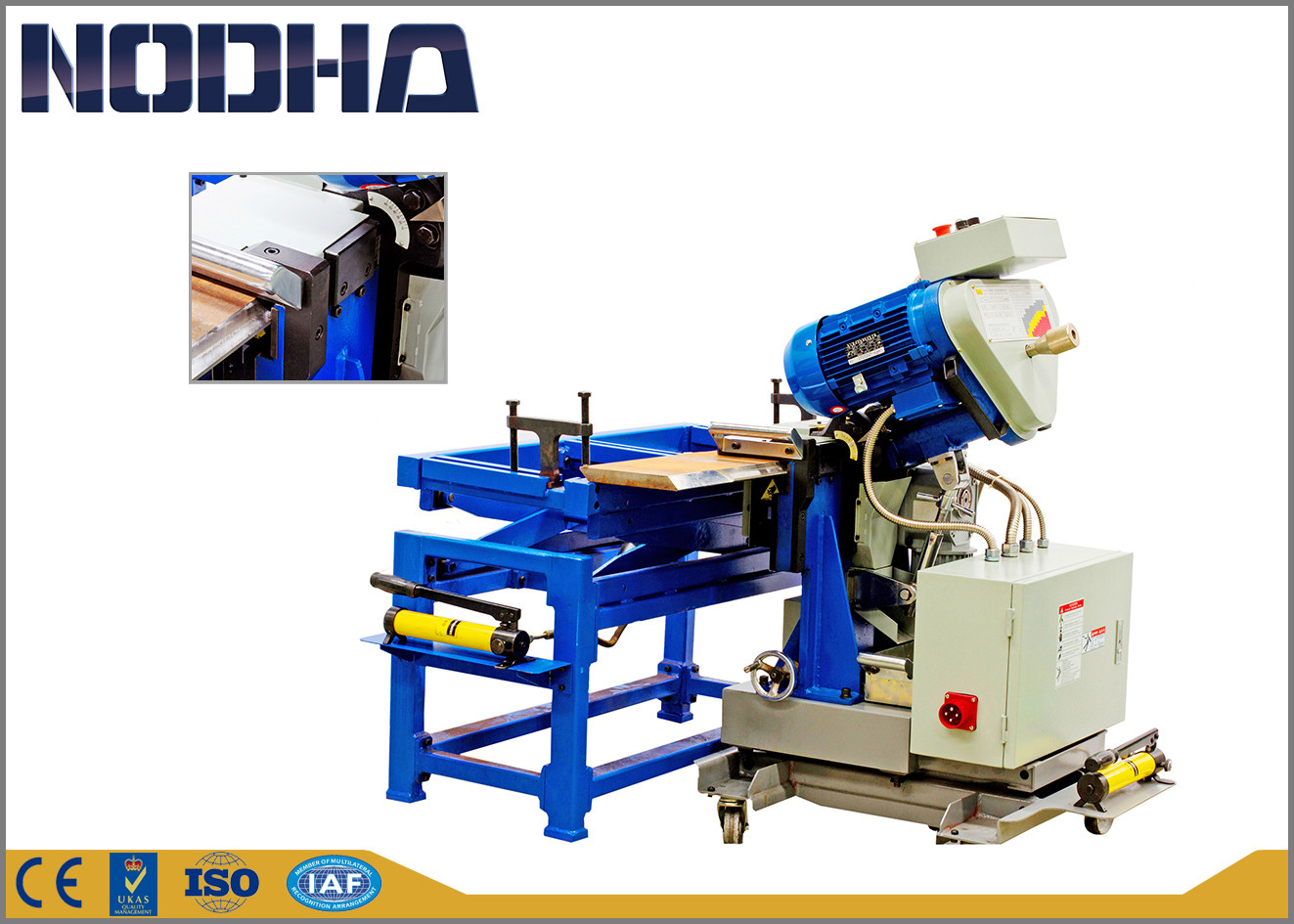

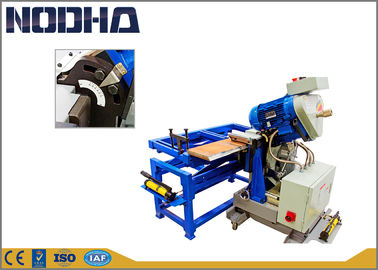

NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed

NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed

  • NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed
  • NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed
  • NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed
  • NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed
NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: GMMA-25AU
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: 90*65*114 cm Plywood Case
Delivery Time: 14 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets Per Year
Contact Now
Detailed Product Description
Motor Voltage: 380V 3PH 50Hz Motor Power: 4800W
Motor Speed: 750-1050 R/min Milling Speed: 0-1500 Mm Per Min
Bevel Angle: 0 To -45 Degree (adjustable) Plate Thickness: 8 To 60mm
Packing: Plywood Case 0 Deg Milling Depth: 50mm
High Light:

Plate Milling Machine

,

Turret Milling Machine

Beveling Underside of Plate Steel Plate Edge Milling Machine Vertical Facing d X Type for 8 to 60mm thick Plate





Introduction



GMMA-25AU Automatic walking and milling machine , it process plate automatically with high efficiency; completely cold cutting, non-oxidation on the surface; for the milling cutter, the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution.Clamp 8-60mm steel plate. worktable height 750-780mm





Features



be used to process iron, chromium iron, fine-grained steel, aluminum products,

copper and aluminum alloy.

Can be processed into “X” and Vertifical –shaped bevel and vertical Facing

Cold cutting, non-oxidation on the surface

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 0 ~ -45 deg.





Application



The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.



NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed 0



Machine parameters



Motor voltage:AC 380V 50Hz Motor power: 4.8 KW
motor speed:750~1050 r/min bevel speed:750-1500 mm/min
single bevel width: 20mm Max bevel width: 0-70mm
Thickness of the plate:8~60mm Plate bevel angle : 10~60 deg
Net weight :245kg Mini clamping plate width: 300*200


Exhibition



NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed 1





Certificate



NODHA Portable Edge Milling Machine , Automatic Milling Machine 750-1050 R/Min Motor Speed 2





After-sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
