| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | GMMA-80A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 90*65*114 cm Plywood Case |
| Delivery Time: | 14 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Sets Per Year |
| Motor Voltage: | 380V 3PH 50Hz | Motor Power: | 2.4 KW*2 |
|---|---|---|---|
| Milling Speed: | 0-1500 Mm Per Min | Bevel Angle: | 0 To 60 Degree (adjustable) |
| Plate Thickness: | 8 To 60mm | Cutter Size: | 60mm (dia) |
| Worktable Height: | 730~760mm | N.W: | 245 Kgs |
| G.W: | 300 Kgs | ||
| High Light: | Plate Milling Machine,Turret Milling Machine |
||

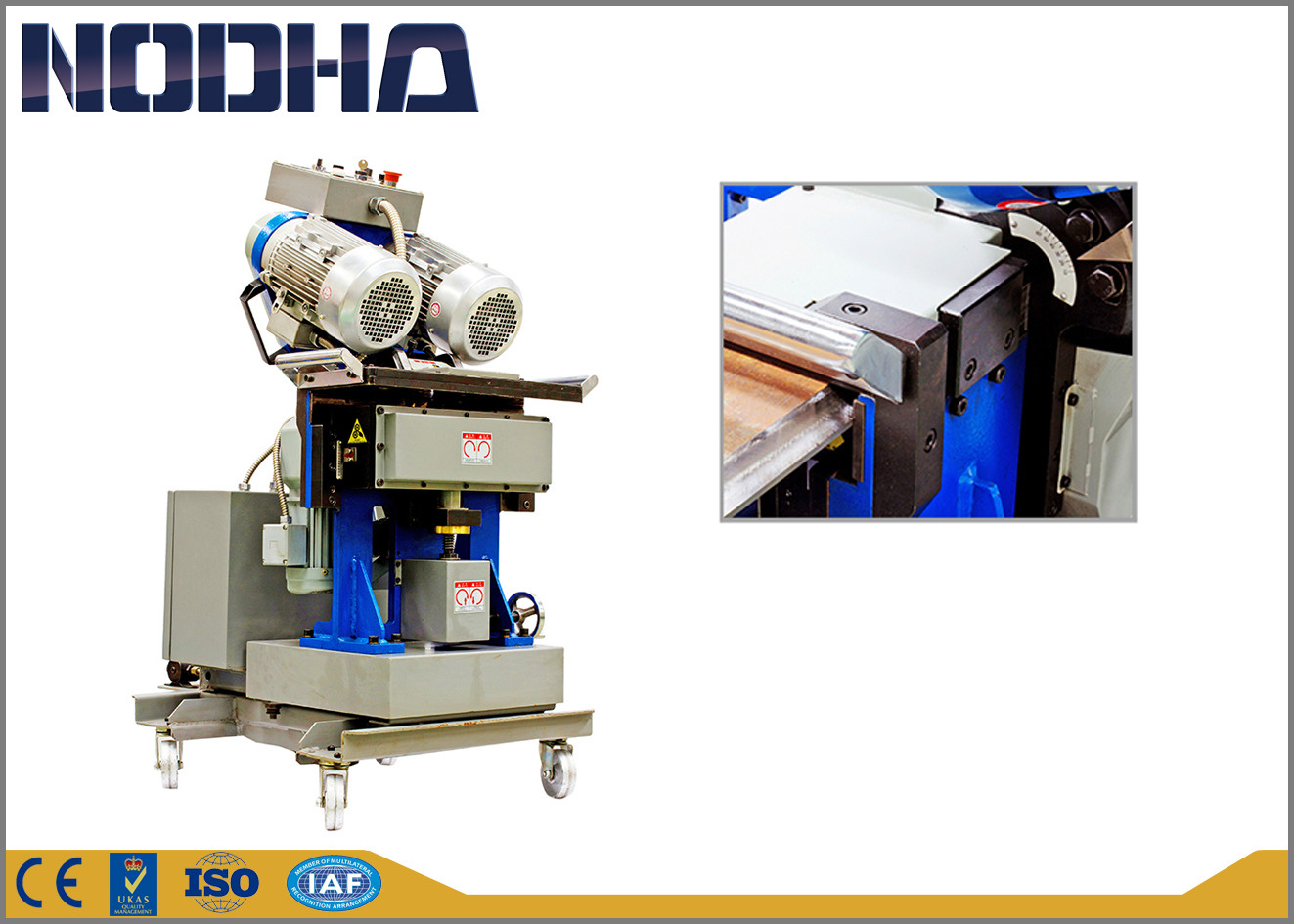

Edge Milling Machine Vertical Facing and K/Y Type 8 to 60mm thick Portable Beveling Machine
| Introduction |
GMMA-80A Automatic milling machine with two motor , it process plate automatically with high efficiency; completely cold cutting, non-oxidation on the surface; for the milling cutter, the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution.Clamp 8-60mm steel plate. worktable height 730-760mm
| Features |
be used to process iron, chromium iron, fine-grained steel, aluminum products,
copper and aluminum alloy.
Can be processed into “K”, “V”, “X” or “Y” –shaped bevel and vertical Facing
Cold cutting, non-oxidation on the surface
No scrap iron splash, Low noise. more safe and environmental
Beveling angle can be adjusted between 0 - 60 deg.
|
Application |
The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.
| Motor voltage:AC 380V 50Hz | Motor power: 4.8 KW |
| motor speed:750~1050 r/min | bevel speed:750-1500 mm/min |
| single bevel width: 20mm | Max bevel width: 0-70mm |
| Thickness of the plate:8~60mm | Plate bevel angle : 10~60 deg |
| Net weight :245kg | Mini clamping plate width: 300*200 |
| Exhibition |
| Certificate |
| After-sale Service |
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
