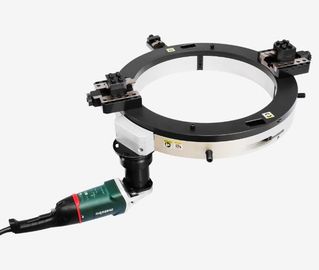

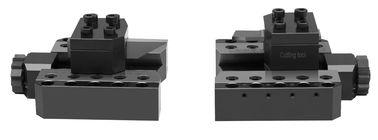

Split Frame Design Portable On Site Pipe Cutting And Beveling Machine Electric Driven

Split Frame Pipe Cutting And Beveling Machine With Electric Driven Wide Range



Pipe Cutting and beveling Machine:

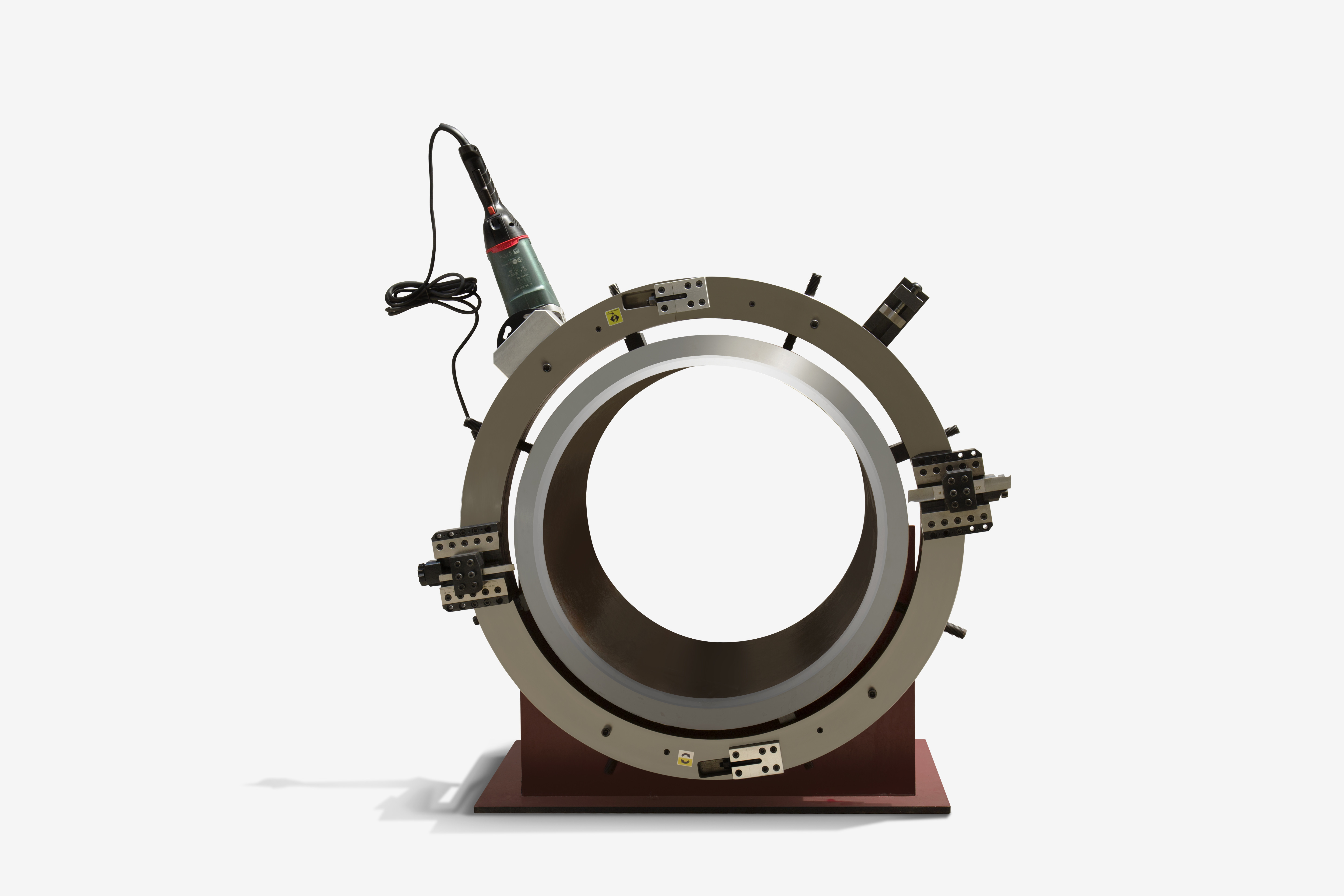

The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200mm), on most wall thicknesses and material. The series machine is ideal for all types of pipe cutting, beveling and end preparation.







• Split Frame
• Cold Cutting/Beveling improve safety
• Cut or Cut/Bevel simultaneous
• Low Axial & Radial Clearance
• Tool feed automatically
• Easy install & Operation
• Pneumatic, Electric and Hydraulic type for option
• Machining OD of pipe from 2” up to 48”







Specification of cold pipe cutting and beveling machine



• Driven options: Pneumatic, Hydraulic or Electric
• Air requirement: 1500L-3000L/Min@0.6/0.7Mpa
• Hydraulic requirement: 2-60L/Min@12.5Mpa
• Electric requirement: 220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed@0.08mm per circle
• Packaging: Plywood case







Selection Guide







Model	Working Range (OD)		d (mm)	D(mm)	L (mm)
	Inch	mm			Steel body	Aluminum body
168	2”-6”	50-168	185	512	178	192
230	2”-8”	50-230	236	564	178	192
275	5”-10”	125-275	283	612	178	192
325	6”-12”	168-325	334	665	178	192
377	8”-14”	219-377	386	719	178	192
426	10”-16”	273-426	438	776	180	195
457	12”-18”	300-457	469	807	180	195
508	14”-20”	355-508	518	862	190	195
560	16”-22”	400-560	570	910	190	195
610	18”-24”	457-610	618	960	190	195
660	20”-26”	508-660	670	1020	190	195
715	22”-28”	550-715	719	1084	190	198
762	24”-30”	600-762	770	1134	190	198
830	26”-32”	660-813	830	1194	192	207
914	30”-36”	762-914	924	1296	212	214
1066	36”-42”	914-1066	1077	1468	212	216
1230	42”-48”	1066-1230	1248	1646	212	216



Suggest: size 1066 and above size select and use hydraulic type







Typical Buttwelding Joint of cold pipe cutting and beveling machine





Suggest: if any other welding seam or special demand, please better to advise us before you place the order.







On site Project



Chemical plant: 24" Phenol Pipeline Maintain

Owner: FORMOSA PHENOL(NINGBO) LIMITED COMPANY
Project: 24” Phenol pipe line maintenance
Site: Ningbo China
Date: 17^th Sep. 2016





This project finished in Sep.2016. It’s a rental project, owner required NODHA supply the 24”

cold cutting machine and operator, owner supply the lifting equipment.





On site cold cutting in chemical plant require explosion proof operation, so we bring ODP-610 go to the site.









Order Guide



Before you place order to us, please let us know the following information:

• Choose the right size

• Advise us the driven options: Pneumatic, Electric or Hydraulic

• Advise us the body options: Steel body or Aluminum body

• Confirm electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)













After-sale Service

1. ​Warranty period: 12 months(Electric motor 6 months)
2. Emergency spare parts required dispatched within 24 hours
