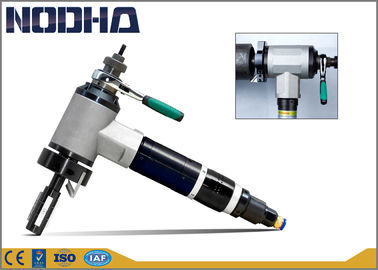

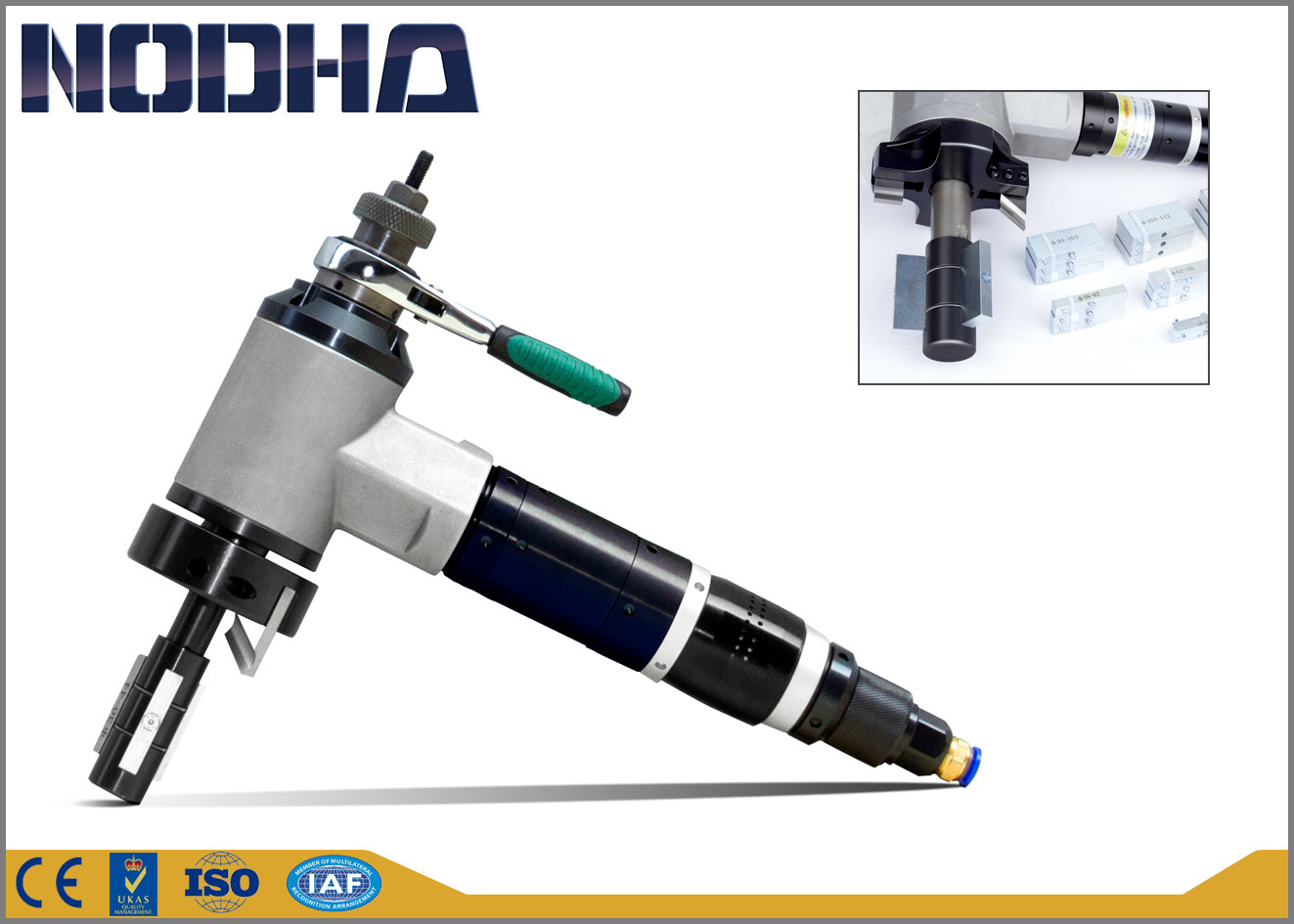

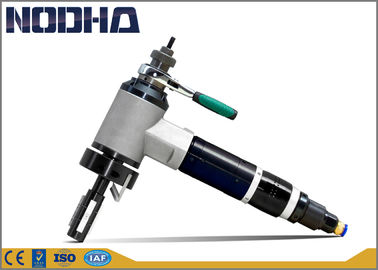

Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design

Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design

  • Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design
  • Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design
  • Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design
Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: IDP-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Aluminium Alloy Case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Driven: Pneumatic Power Supply: 900L/Min@0.6Mpa
Motor Power: 1 HP Clamping Range(ID): 40-110mm
Working Range(OD): 4"(114.3mm) Wall Thickness: ≤15mm
Rotation Speed: 35r/min Working Weight: 18.5kgs
Shipping Weight: 26kgs Packing Size: 610*520*210mm
High Light:

Large Diameter Pipe Cutter

,

Pipe Cold Cutter



PIPE BEVELING MACHINE

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.



Features


  • Right angle tool rigidly mounts to tube I.D.
  • Easy installation & Operation
  • Self-Centering
  • Can be placed in any direction
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric or Pneumatic driven for option
  • Adjust Speed




Application


  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Process Plant & Fabrication
  • Ship Building & Repair




Specification


  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case




Selection Guide


Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mminchmmmm
8028-76388.9≤15
12040-1104114.3≤15
25280-24010273.05≤20




Order Guide
Before you place order to us, please let us know the following information:


  • Choose the right Model

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed




Working On Site

Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design 0



Exhibition

Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design 1



Packaging

Light Weight Pneumatic Pipe Beveler / Pipe Cold Cutter Compact Design 2



After-Sale Service

1. Warranty period: 12 months(Electric motor 6 months)
2. Emergency spare parts required dispatched within 24 hours
