| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | PB-15 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case. |
| Delivery Time: | 6 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 SETS/ YEAR |
| Power Supply: | 220V 1PH 50/60HZ | Motor Power: | 2450 KW |
|---|---|---|---|
| Spindle Speed: | 2500-7500 RPM | Feed Speed: | 1-10M/Min |
| Beveling Width: | 1-18mm | Beveling Angle: | 20,30,35,37.5,45,55,60 Degree. |
| Insert Qty: | 4-5pcs | Weight: | 8.5 Kgs |
| High Light: | Vertical Milling Machine,Steel Milling Machine |
||

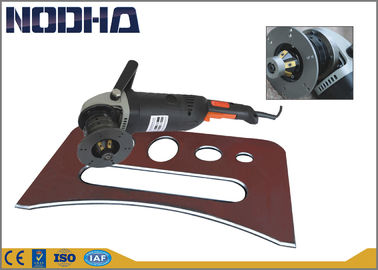

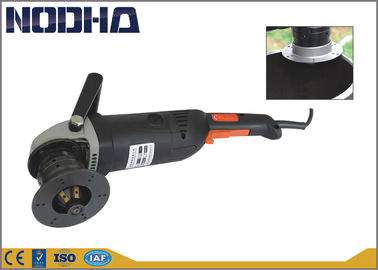

Handheld Edge Milling Machine Introduction:
PB -15 applies to preparation before welding
The machine equipped with continuous bevel width adjustment, overheating protection and electric
speed control for use on various material. The compact design makes it an excellent tool in narrow space. light weight, compact design, colding milling, explosion-proof.
Features
Multi function and flexibility can improve efficiency and make the machine become an attarctive machine.
Variable Speed Motor from 2500 - 7500 rpm
No Chatter, No Vibration
Adjust depth control - simple and easy to use
Milling straight bevel width up to 17mm
Milling radius edge of 2 or 3 mm
Milling steel, stainless steel, aluminum and wood
Application
Specification
| Power Supply: 220V 1PH 50/60HZ | Beveling Width: 1-18mm |
| Motor Power: 2450 W | Radius dimension: 2mm, 3mm |
| Cutter Rotation: 2500-7500 RPM | Min Plate Thick: 1.5mm |
| Beveling Angle: 20°/30°/37.5°/45° | N.w: 8.5 kgs |
Exhibition
| After-sale Service |
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
