| Place of Origin: | WUXI |
| Brand Name: | NODHA |
| Certification: | CE,ISO |
| Model Number: | PB-15 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case. |
| Delivery Time: | 8 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 SETS/ YEAR |
| Power Supply: | 220-240V 1PH 50/60HZ | Motor Power: | 2450W |
|---|---|---|---|
| Spindle Speed: | 2500-7500 RPM | Feed Speed: | 10 M/Min |
| Beveling Width: | 18mm | Radius Dimension: | R2, R3 |
| Beveling Angle: | 20,30,35,37.5,45,55 And 60 Deg. | Color: | Customized |
| High Light: | Vertical Milling Machine,Steel Milling Machine |
||

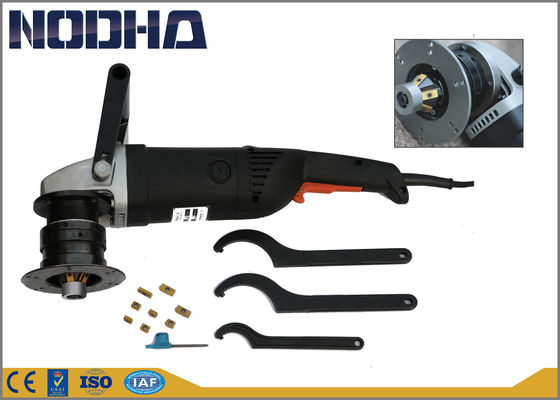

Hand held Plate Edge Milling Machine Plate Hand Milling Machine Plate Edge Milling and Beveling Machine
Handheld Edge Milling Machine Introduction:
PB-15 applies to preparation before welding, also edge rouding off steel construction before painting or coating.
The machine equipped with continuous bevel width adjustment, overheating protection and electric
speed control for use on various material. The compact design makes it an excellent tool in narrow space.
Features
The multi function and flexibility can improve efficiency and make the machine become an attarctive machine.
Application
Specification
| Power Supply: 220-240V 1PH 50/60HZ | Beveling Width: 1-18mm |
| Motor Power: 2450 W | Radius dimension: R2, R3 |
| Cutter Rotation: 2500-7500 RPM | Min Plate Thick: 1.5mm |
| Beveling Angle: 20°/30°/37.5°/45° | N.w: 8.5 kgs |
Exhibition
Certification
| After-sale Service |
1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
