| Place of Origin: | Wuxi, China |
| Brand Name: | NODHA |
| Certification: | CE, ISO |
| Model Number: | AODH-830 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8500~USD10000 |
| Packaging Details: | Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case. |
| Delivery Time: | 5-8 working days after getting the down payment |
| Supply Ability: | 1000 sets/year |
| Name: | Cold Pipe Cutting And Bevelling Machine | Drive: | Hydraulic Driven |
|---|---|---|---|
| Power Supply: | 380-440V 3PH 50/60HZ | Working Range(OD): | 26"-32"(660-813mm) |
| Wall Thickness: | ≤30 | Feed: | Automatic |
| Working Weight: | 121 | Shipping Weight: | 182 |
| Package Size: | 1150*1150*330mm | Mounting Method: | Split OD Mounted |
| High Light: | pipe bevel cutter,pipe bevelling machine |
||
Pipe Cutting and beveling Machine:

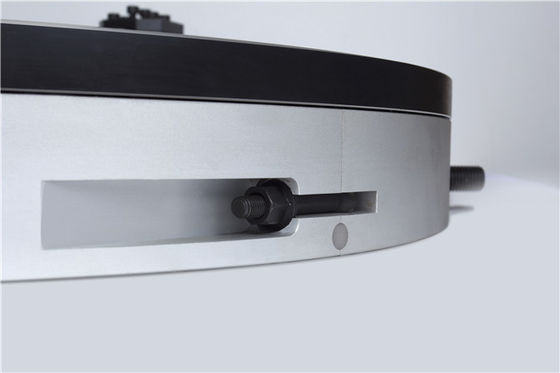

The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200mm), on most wall thicknesses and material. The series machine is ideal for all types of pipe cutting, beveling and end preparation.
| Features(cold pipe cutting and bevelling machine) |
| Specification(cold pipe cutting and bevelling machine) |
| Selection Guide(cold pipe cutting and bevelling machine) |
| Model | Working Range (OD) | d (mm) | D(mm) | L (mm) | ||
| Inch | mm | Steel body | Aluminum body | |||
| 168 | 2”-6” | 50-168 | 185 | 512 | 178 | 192 |
| 230 | 3”-8” | 80-230 | 236 | 564 | 178 | 192 |
| 275 | 5”-10” | 125-275 | 283 | 612 | 178 | 192 |
| 325 | 6”-12” | 168-325 | 334 | 665 | 178 | 192 |
| 377 | 8”-14” | 219-377 | 386 | 719 | 178 | 192 |
| 426 | 10”-16” | 273-426 | 438 | 776 | 180 | 195 |
| 457 | 12”-18” | 300-457 | 469 | 807 | 180 | 195 |
| 508 | 14”-20” | 355-508 | 518 | 862 | 190 | 195 |
| 560 | 16”-22” | 400-560 | 570 | 910 | 190 | 195 |
| 610 | 18”-24” | 457-610 | 618 | 960 | 190 | 195 |
| 660 | 20”-26” | 508-660 | 670 | 1020 | 190 | 195 |
| 715 | 22”-28” | 550-715 | 719 | 1084 | 190 | 198 |
| 762 | 24”-30” | 600-762 | 770 | 1134 | 190 | 198 |
| 830 | 26”-32” | 660-813 | 830 | 1194 | 192 | 207 |
| 914 | 30”-36” | 762-914 | 924 | 1296 | 212 | 214 |
| 1066 | 36”-42” | 914-1066 | 1077 | 1468 | 212 | 216 |
| 1230 | 42”-48” | 1066-1230 | 1248 | 1646 | 212 | 216 |
Suggest: size 1066 and above size select and use hydraulic type
| Typical Buttwelding Joint |
Suggest: if any other welding seam or special demand, please better to advise us before you place the order.
| Order Guide |
Before you place order to us, please let us know the following information:
Choose the right size
Advise us the driven options: Pneumatic, Electric or Hydraulic
Advise us the body options: Steel body or Aluminum body
Confirm electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
After-sale Service
