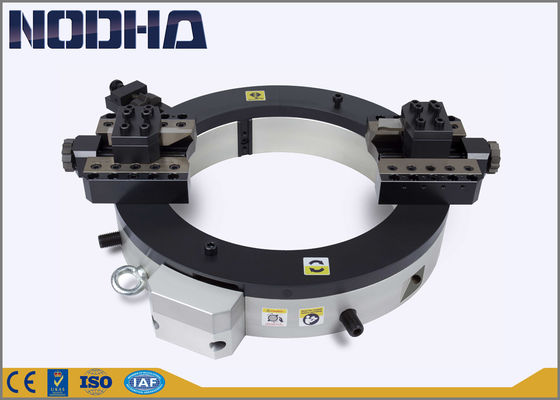

Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36"

Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36"

  • Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36"
  • Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36"
Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36"
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: AODH-914
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, T/T, Western Union
Supply Ability: 500 SETS/ YEAR
Contact Now
Detailed Product Description
Drive: Hydraulic Driven Power Supply: 2-60L Per Minute@12.5Mpa
Working Range(OD): 30"-36"(762-914mm) Wall Thickness: ≤30mm
Material: Aluminum Shipping Weight: 209.5kgs
Working Weight: 144.5kgs Package Size: 1130*1200*330mm
Mounting Method: Split OD Mount Name: Pipe Beveling Equipment
Highlight:

automatic pipe cutter machine

,

cutting beveling machine


The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.



Features of pipe beveling equipment



  1. Cold Cutting and Beveling improve safety
  2. Cutting and Beveling simultaneous
  3. Split Frame: easy mounted on pipeline
  4. Self-acting tools feed
  5. Pneumatic or Electric or Hydraulic driven
  6. Machining heavy-wall pipe from 2” up to 48”







Application of pipe beveling equipment

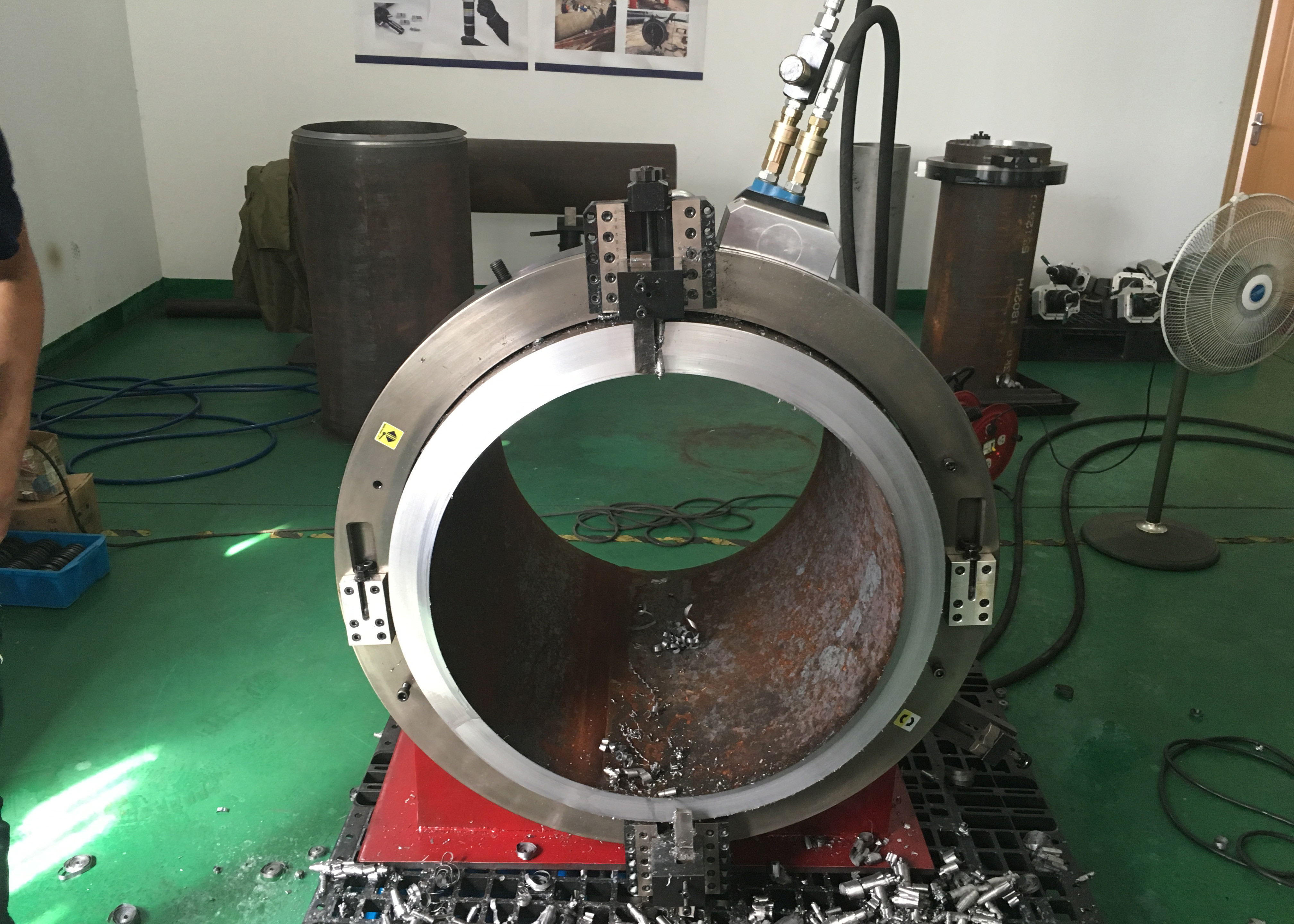

Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36" 0







Specification of pipe beveling equipment



  1. Drive Options: Pneumatic, Hydraulic, and Electric
  2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
  3. Hydraulic requirement: 2-60L per minute 12.5Mpa
  4. Electric requirement:220-240V 1PH 50/60HZ
  5. Feed rate: Fixed 0.08mm per circle







Selection Guide



Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36" 1





Model Working Range (OD) d (mm) D(mm) L (mm)
Inch mm
168 2”-6” 50-168 185 512 178
230 3”-8” 80-230 236 564 178
275 5”-10” 125-275 283 612 178
325 6”-12” 168-325 334 665 178
377 8”-14” 219-377 386 719 178
426 10”-16” 273-426 438 776 180
457 12”-18” 300-457 469 807 180
508 14”-20” 355-508 518 862 190
560 16”-22” 400-560 570 910 190
610 18”-24” 457-610 618 960 190
660 20”-26” 508-660 670 1020 190
715 22”-28” 550-715 719 1084 190
762 24”-30” 600-762 770 1134 190
830 26”-32” 660-813 830 1194 192
914 30”-36” 762-914 924 1296 212
1066 36”-42” 914-1066 1077 1468 212
1230 42”-48” 1066-1230 1248 1646 212



Suggest: size 1066 and above size select and use hydraulic type







Order Guide



Before you place order to us, please let us know the following information:

  1. Choose suitable Model

  2. Confirm electric power supply ( Voltage, frequency and phase)

  3. Confirm the beveling angel needed

  4. Confirm the welding joint required (U, V, Double V or Compound preparation)

  5. Advise your pipe material ( Carbon steel, stainless steel or others)

  6. Other special demands about machine

  7. If the pipe wall thickness more than 30mm, inform us in advance (Important)







Exhibition



Aluminium Hydraulic Driven Pipe Cold Cutting Machine Large Working Range 30" - 36" 2







After-Sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
