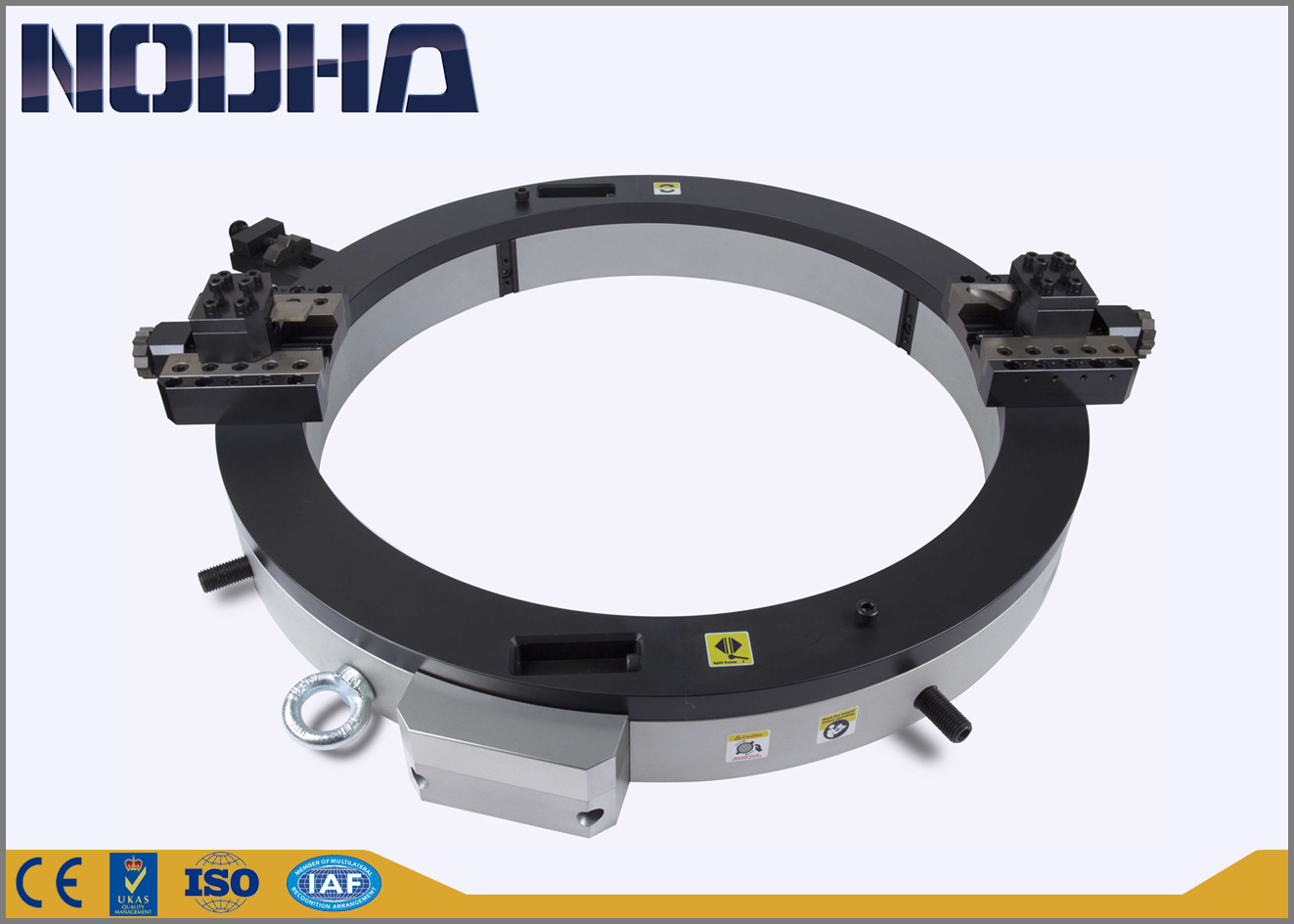

24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor

24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor

  • 24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor
24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: AODE-762
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 SETS/ YEAR
Contact Now
Detailed Product Description
Valtage: 220-240V Working Range(OD): 24"-30"(600-762mm)
Wall Thickness: ≤30 Mounting Method: Split OD Mount
Working Weight: 116kgs Shipping Weight: 172kgs
Package Size: 1090*1090*330mm Meterial: Aluminum
Standard Bevel Angle: 0°,30°,37.5° Refrigeration: Cooling Liquid
Name: Cold Pipe Cutting And Bevelling Machine
High Light:

pipe bevel cutter

,

pipe bevelling machine


Specification of cold pipe cutting and beveling machine



  1. Drive Options: Pneumatic, Hydraulic, and Electric
  2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
  3. Hydraulic requirement: 2-60L per minute 12.5Mpa
  4. Electric requirement:220-240V 1PH 50/60HZ
  5. Feed mode: Star wheel, automatically
  6. Feed rate: Fixed 0.08mm per circle





Features of cold pipe cutting and beveling machine



  1. Cold Cutting & Beveling improve safety
  2. Cutting and Beveling at the same time
  3. Split Frame: easy mounted on pipeline
  4. Self-acting tools feed
  5. Fast, Precision, In-situ Beveling
  6. Minimal Axial and Radial clearance
  7. Light weight and Compact design
  8. Easy installation & Operation
  9. Pneumatic or Electric or Hydraulic driven







Application of cold pipe cutting and beveling machine



  1. Oil & Gas File
  2. Power Plant
  3. Chemical Plant
  4. Nuclear Power Plant
  5. Process Plant & Fabrication
  6. Ship Building & Repair







Selection Guide



24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor 0





Model Working Range (OD) d (mm) D(mm) L (mm)
Inch mm
168 2”-6” 50-168 185 512 178
230 2”-8” 50-230 236 564 178
275 5”-10” 125-275 283 612 178
325 6”-12” 168-325 334 665 178
377 8”-14” 219-377 386 719 178
426 10”-16” 273-426 438 776 180
457 12”-18” 300-457 469 807 180
508 14”-20” 355-508 518 862 190
560 16”-22” 400-560 570 910 190
610 18”-24” 457-610 618 960 190
660 20”-26” 508-660 670 1020 190
715 22”-28” 550-715 719 1084 190
762 24”-30” 600-762 770 1134 190
830 26”-32” 660-813 830 1194 192
914 30”-36” 762-914 924 1296 212
1066 36”-42” 914-1066 1077 1468 212
1230 42”-48” 1066-1230 1248 1646 212



Suggest: size 1066 and above size select and use hydraulic type





Working On Site



24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor 1







Exhibition



24'' - 30'' Lighter Aluminium Pipe Cold Cutting And Beveling Machine Electric Motor 2







After-Sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours







Tag:

pipe cold cutting machine,

pipe bevelling machine,

pipe bevel cutter
