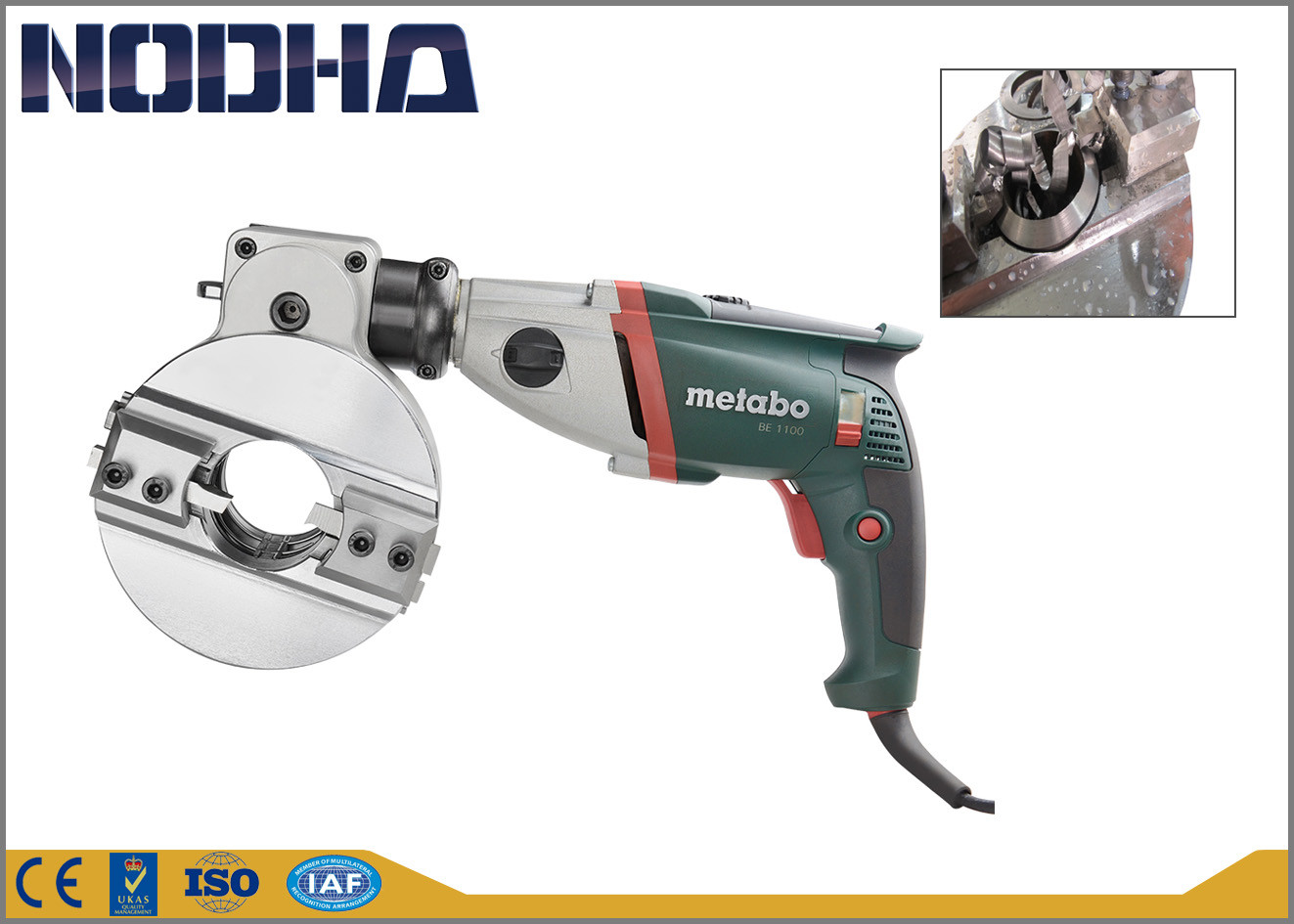

220-240V High Efficiency Tube Beveling Machine For Pipe Cutting Dia. 57-114mm

220-240V High Efficiency Tube Beveling Machine For Pipe Cutting Dia. 57-114mm

  • 220-240V High Efficiency Tube Beveling Machine For Pipe Cutting Dia. 57-114mm
220-240V High Efficiency Tube Beveling Machine For Pipe Cutting Dia. 57-114mm
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: ESCB-114
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Aluminum Case
Delivery Time: 5-7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Driven: Electric Driven Motor: METABO Motor
Working Range: Dia. 57-114mm Thickness: ≤15mm
Speed: 30-120r/min Net: 16.5kgs
After-sale Service Provided: Engineers Available To Service Machinery Overseas Warranty: One Year
Refrigeration: Cooling Liquid
High Light:

Tube Beveling Machine

,

Pipe Cutting Equipment



High-Efficiency Self-Centering Pipe Cutting And Beveling Machine



Adopt high strength & precision ring structure, apply for pipe cutting and beveing, especially for batch working of cutting and beveling

Adopt METABO motor: low noise, long life, stable performance and perfect speed adjustable function, with CE certificate.

Power supply: Electric Operated:220-240V 1PH 50/60HZ ESCB Serious





Feature



  • Self-centering, make the installation much faster.
  • Compact structure and good appearance, high strength aluminum body.
  • Adopt new synchronous feeding mechanism, feeding uniformity, tool bits has longer working life.
  • Easy set-up, operation and maintain.
  • Cutting & beveling finished at same time, high working efficiency.
  • Cold working, no spark, won't make the material affected.
  • Perfect working precision, no burrs.
  • Well-adapted, you can make the speed adjust depend on the working conditions.





Specification



Model Working Range Thickness Speed Net Weight
ESCB-63 Dia. 14-63mm ≤15mm 30-120r/min 13kgs
PSCB-63 Dia. 14-63mm ≤15mm 30-120r/min 13.5kgs
ESCB-114 Dia. 57-114mm ≤15mm 30-120r/min 16kgs
PSCB-114 Dia. 57-114mm ≤15mm 30-120r/min 16.5kgs

*Only for open end pipe, can not split







Exhibition



220-240V High Efficiency Tube Beveling Machine For Pipe Cutting Dia. 57-114mm 0







After-Sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
