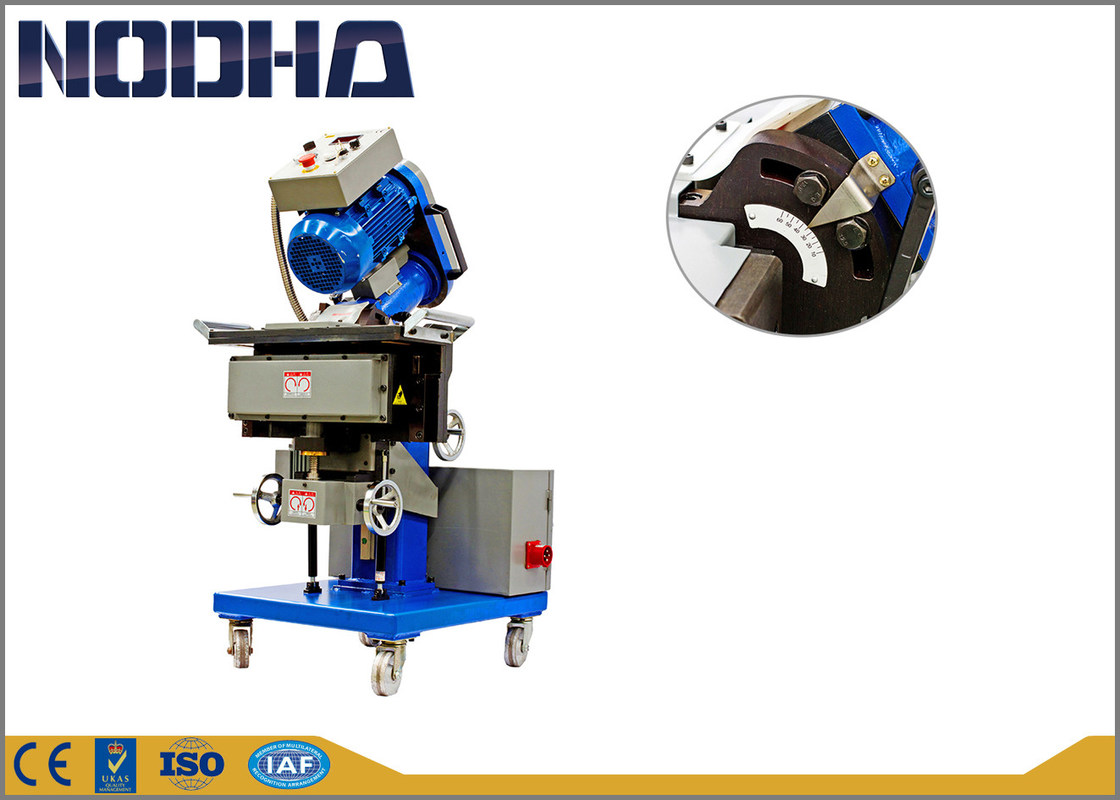

3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed

3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed

  • 3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed
  • 3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed
  • 3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed
3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed
Product Details:
Place of Origin: WUXI
Brand Name: NODHA
Certification: CE,ISO
Model Number: GMMA-60S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: 100*65*114 cm Plywood Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 270 Sets Per Year
Contact Now
Detailed Product Description
Motor Voltage: 380V 3PH 50Hz Motor Power: 3.4 KW
Milling Speed: 0-1500 Mm/ Min Bevel Angle: 10 To 60 Degree (adjustable)
Plate Thick: 8 To 40mm N.W: 220KGS
Cutter: 6 Pcs Cutter Size: 63mm (dia)
Shipping Weight: 265kgs
High Light:

Plate Milling Machine

,

Turret Milling Machine

V/Y Type Milling Machine For 8 To 40 mm Thick Metal Plate Edge Milling Machine Plate Beveling Machine





Introduction



GMMA-60S Automatic Walking Edge milling machine, this machine can process plate automatically with high efficiency; cold cutting, non-oxidation on the surface; 6 pcs of milling cutter 63 mm dia, the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution. Worktable height 730-760mm,





Features



be used to process iron, chromium iron, fine-grained steel, aluminum products,

copper and aluminum alloy.

Can be processed into “V”,  “Y” –shaped bevel.

Cold cutting, non-oxidation on the surface

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 10 - 60 deg.





Application



The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.



3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed  0





Machine parameters



Motor voltage:AC 380V 50Hz Motor power: 3.4 KW
motor speed:1050 r/min bevel speed:0-1500 mm/min
single bevel width:15mm Max bevel width: 45mm
Thickness of the plate:8~40mm Plate bevel angle : 10~60 deg
Net weight :220kg Mini clamping plate width: 300*200mm


Exhibition



3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed  1



Certificate



3.4 KW Environmental Plate Edge Milling Machine With Adjustable Milling Speed  2





After-sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
